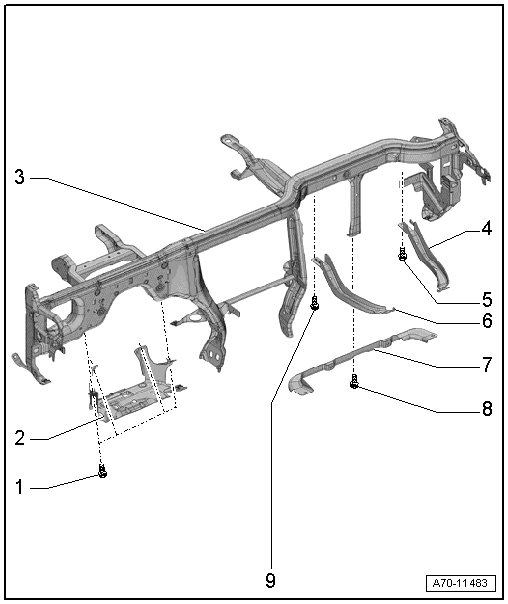

Knee Airbag Mount and Glove Compartment Assembly Overview

Knee Airbag Mount and Glove Compartment Assembly Overview






1 Bolt

• Quantity: 4

• For the correct tightening specifications, refer to => [ Driver Knee Airbag Assembly Overview ] Driver Knee Airbag Assembly Overview

2 Bracket

• For the driver knee airbag

• Removing and Installing, refer to => [ Driver Side Knee Airbag, Disconnecting from Bracket ] Driver Side Knee Airbag, Disconnecting From Bracket

3 Central tube

• For the instrument panel

• Removing and Installing, refer to => [ Instrument Panel Central Tube ] Instrument Panel Central Tube

4 Right retainer

• For knee airbag

• Removing and Installing, refer to => [ Knee Airbag Mount ] Knee Airbag Mount

• Install the bracket and rubber grommet into the mount

5 Bolt

• 9 Nm

6 Left retainer

• For knee airbag

• Removing and Installing, refer to => [ Knee Airbag Mount ] Knee Airbag Mount

• Install the bracket and rubber grommet into the mount

7 Supports

• For knee airbag

• Removing and Installing, refer to => [ Front Passenger Knee Airbag Igniter N296 ] Front Passenger Knee Airbag Igniter N296

8 Bolt

• For the correct tightening specifications, refer to => [ Glove Compartment Assembly Overview ] Glove Compartment Assembly Overview

9 Bolt

• 9 Nm
