Selector Lever Handle With Stationary Selector Lever Cover and Selector Lever Scale Illumination Bulb (L101) Overview

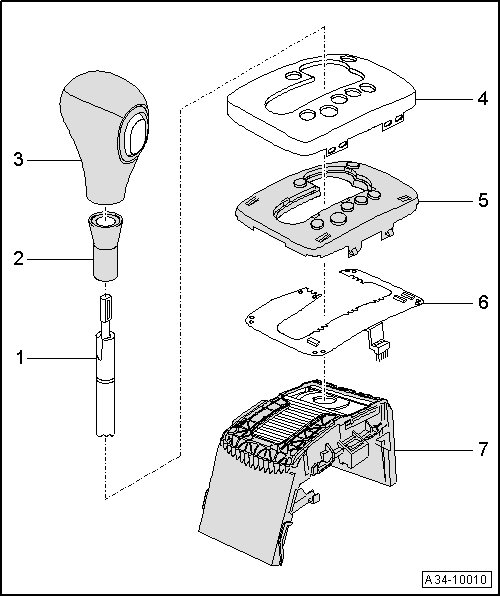

Selector Lever Handle with Stationary Selector Lever Cover and Selector Lever Scale Illumination Bulb (L101) Overview






1 Selector Lever

2 Sleeve

• Install in the selector lever handle

• Locks the removal of selector lever handle

3 Selector Lever Handle

• Refer to => [ Selector Lever Handle, with Stationary Selector Mechanism Cover ] Selector Lever Handle, With Stationary Selector Mechanism Cover

4 Cover

• With symbol panel

• Clipped into the frame - 7 -

• With selector lever scale and Tiptronic gate

• Refer to => [ Stationary Selector Mechanism Cover ] Stationary Selector Mechanism Cover

5 Symbol Panel

• Clipped into cover

6 Cover Circuit Board with the Selector Lever Scale Illumination (L101)

• Refer to => [ Cover Circuit Board with Selector Lever Scale Illumination Bulb (L101), for Vehicles with Stationary Shift Mechanism Cover ] Cover Circuit Board With Selector Lever Scale Illumination Bulb (L101), For Vehicles With Stationary Shift Mechanism Cover

• Check the vehicle through the Guided Fault Finding vehicle tester.

7 Frame

• With cover strip

• Removing and installing, refer to => [ Cover Circuit Board with Selector Lever Scale Illumination Bulb (L101), for Vehicles with Stationary Shift Mechanism Cover ] Cover Circuit Board With Selector Lever Scale Illumination Bulb (L101), For Vehicles With Stationary Shift Mechanism Cover
