Reduction Catalytic Converter

Reduction Catalytic Converter

Removing

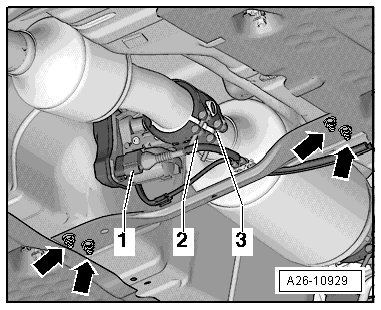

- Loosen the clamp - 2 -.





- Loosen the clamping sleeve threaded connections - arrows -.





- Slide the clamping sleeve to the rear then remove the reduction catalytic converter.

Installing

Installation is in reverse order of removal, note the following:

• Installation position of the seal between the exhaust flap control module (J883) and NOx reservoir or reduction catalytic converter => [ Seal between the and NOx Reservoir or
Reduction Catalytic Converter Installed Position. ] Exhaust Door Control Unit With Reduction Catalytic Converter Assembly Overview.

=> [ Clamps, Installed Position on Exhaust System ] Clamps, Installed Position on Exhaust System

=> [ Exhaust System, Installing ] Exhaust System, Installing
