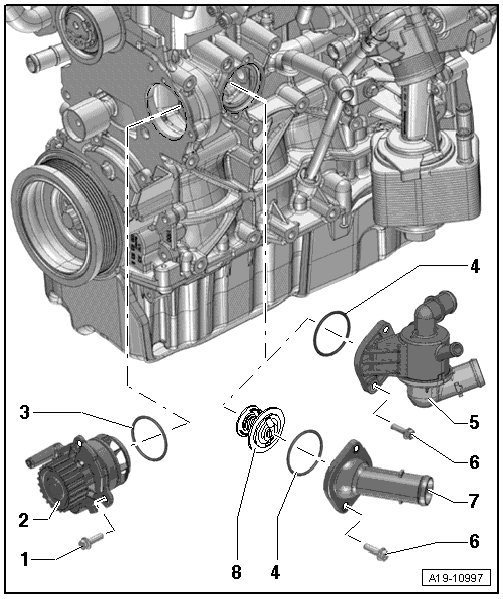

Coolant Pump and Coolant Thermostat Assembly Overview

Coolant Pump and Coolant Thermostat Assembly Overview






1 Bolt

• 15 Nm

2 Coolant pump

• Removing and installing, refer to => [ Coolant Pump ] Coolant Pump

3 O-ring

• Replace

4 O-ring

• Replace

5 4/2-Way Valve with Thermostat

• Installed depending on the version

• Removing and installing, refer to => [ 4/2-Way Valve with Thermostat ] 4/2-Way Valve with Thermostat

• The thermostat is located inside the 4/2-way valve and cannot be replaced separately.

6 Bolt

• 15 Nm

7 Connecting Piece

• Installed depending on the version

8 Coolant Thermostat

• Removing and installing, refer to => [ Coolant Thermostat ] Coolant Thermostat

• Checking, refer to => [ Thermostat, Checking ] Testing and Inspection

• Installed only on the version with connection - 7 -
