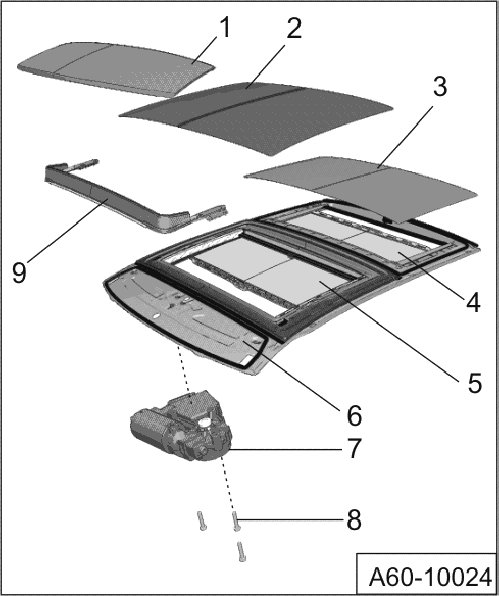

Exterior Assembly Parts

Exterior Assembly Parts






1 Panel - 1 -

• Bonded to roof module.

• Cannot be removed undamaged without removing windshield.

2 Panel - 2 -

• Removing, refer to => [ Sunroof Panel ] Service and Repair

3 Panel - 3 -

• Bonded to roof module.

4 Rear Sunroof Shade

• Removing => [ Remove the Rear Sunroof Shade ] Sunroof Shade

5 Front Sunroof Shade

6 Roof Module

• Overview

7 Sunroof Motor

• Removing and installing, refer to => [ Sunroof Motor ] Service and Repair

8 Combination Screw

• 3.5 Nm

9 Wind Deflector

• Removing, refer to => [ Wind Deflector ] Service and Repair
