Procedures

Subframe and Bracket, Securing

Special tools, testers and auxiliary items required

• Locating Pins (T10096)

• Engine/Transmission Jack (V.A.G 1383 A) with Universal Transmission Support (V.A.G 1359/2)

Removing






To secure the subframe with the brackets, install the (T10096) in locations - 1, 8, 9 and 18 -.

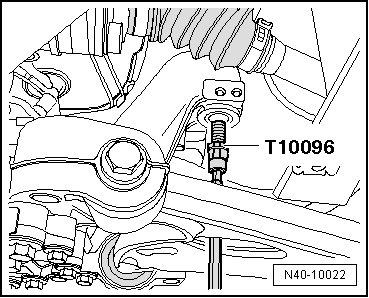

- Replace bolts with (T10096) and tighten to 20 Nm.






- Replace the bolts with (T10096) and tighten to 20 Nm.






Position of front axle is now secured.

Installing

Install in reverse order of removal. Make sure that (T10096) are replaced in succession with new bolts.

Tightening specifications, refer to => [ Subframe, Diagonal Brace, Ball Joint, Stabilizer Bar, Transverse Link, Bracket and Vehicle Level Sensor Overview ] Subframe, Diagonal Brace, Ball Joint, Stabilizer Bar, Transverse Link, Bracket and Vehicle Level Sensor Overview.

Tightening specifications, refer to => [ Wheel Bearing Housing and Wheel Bearing Unit Overview ] Service and Repair.

- Axle alignment is required, see Table => [ An axle alignment is necessary when: ] Wheel Alignment.
