Engine, Removal

Operation number: 21004-0

Engine, removal

Note! Some variation in the illustrations may occur, but the essential information is always correct.











Removal

Disconnect the battery. Refer to: Battery, disconnecting Battery Disconnecting.
Evacuate the fuel pressure. Refer to: Fuel system pressure release Fuel System Pressure Release.
Drain the cooling system. Refer to: Cooling system - draining, charging and bleeding Service and Repair.


Remove the following items:
- the auxiliaries belt Refer to: Auxiliary belt, B6324S5 Service and Repair
- the catalytic converter. Refer to: Catalytic converter, B6324S5 Service and Repair
- the upper torque rod. Refer to: Upper torque rod, B6324S5 Upper Torque Rod
- the propeller shaft. Refer to: Propeller Shaft, B6324S5, TF-80SC AWD Propeller Shaft
- front tires. Refer to: Installing wheels Service and Repair
- air cleaner housing. Refer to: Air cleaner housing, B6324S5 Service and Repair
- engine control module (ECM).

Loosen the AC-compressor and lay aside. Refer to: AC compressor, replacement, B6324S5 Service and Repair
Loosen nut link arm. Refer to: Ball joint, replacing Service and Repair



































Warning! Be prepared to collect escaping fluid.






Warning! Be prepared to collect escaping fluid.






Warning! Be prepared to collect escaping fluid.

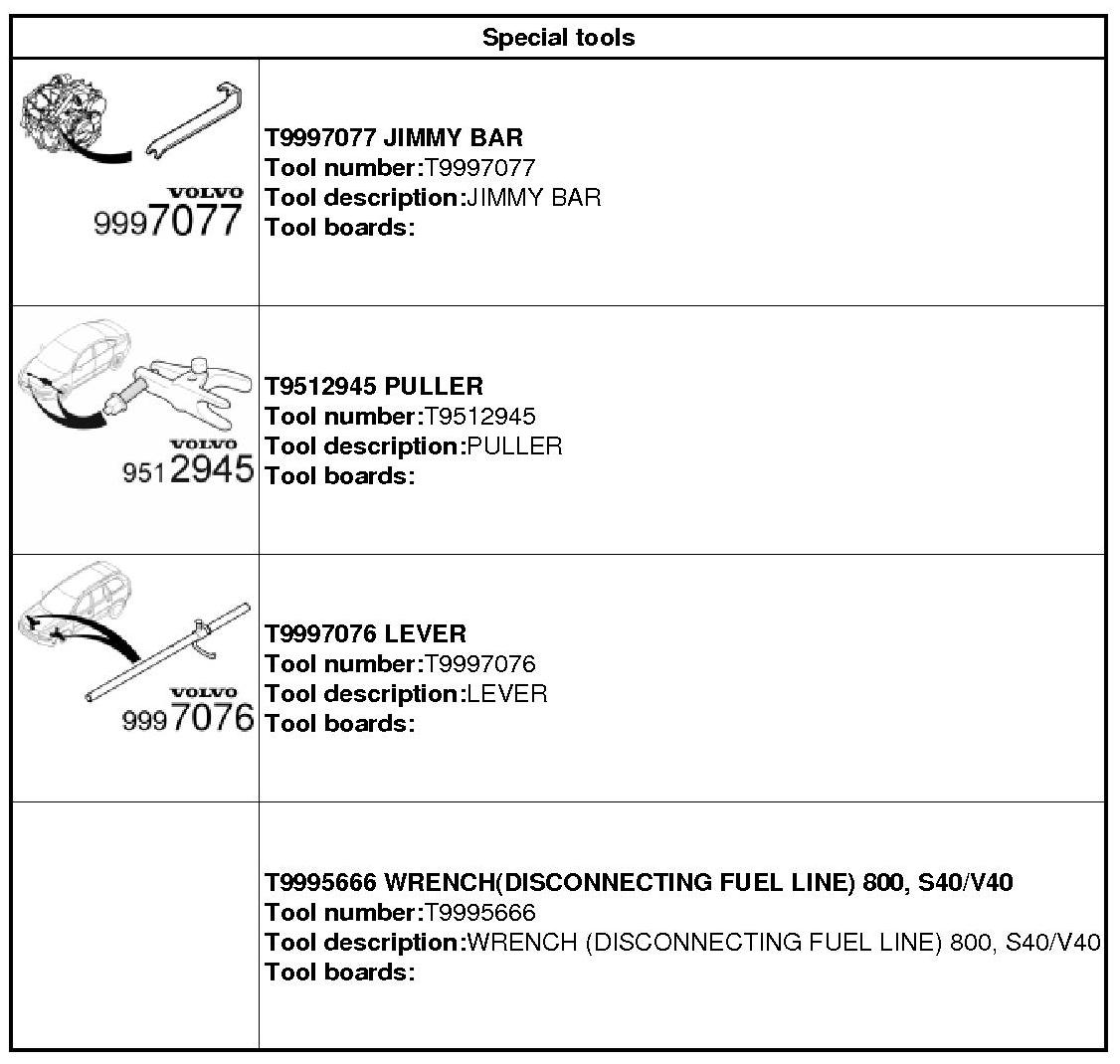

999 7077 Jimmy bar 999 7077 Jimmy Bar






Warning! Be prepared to collect escaping fluid.































Caution! Make sure that the ball joint ball does not rotate.

951 2945 Puller 951 2945 Puller














999 7076 Lever 999 7076 Lever











Caution! Be prepared to collect escaping fluid.

999 5666 Wrench 999 5666 Wrench






Caution! Make sure that the lifting table is centered correctly under the engine.

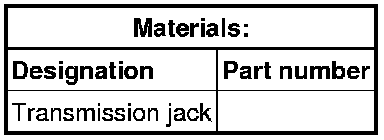

Use: Transmission jack,






Caution! Make sure that no components catch when lowering the subframe.
