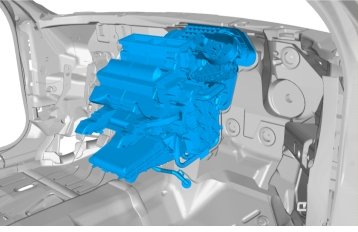

Housing Assembly HVAC: Service and Repair

Operation number: 87322-2

Climate units

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wiper arm Refer to: Wiper arm Service and Repair

Remove the wiper mechanism, windscreen Refer to: Wiper mechanism, windshield, L.H.D Service and Repair




Torque: M6, 10 Nm




Torque: M6, 10 Nm

Perform draining refrigerant, vacuum pumping, and filling Refer to: Draining refrigerant, vacuum-pumping, and filling Draining Refrigerant, Vacuum-Pumping, and Filling

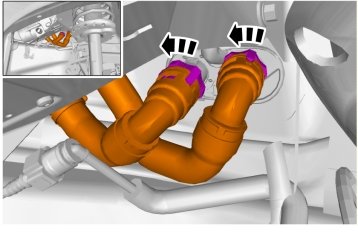

Perform cooling system draining, charging and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B5254T5 Service and Repair

Remove the expansion valve Refer to: Expansion valve, B6304T4, TF-80SC AWD, L.H.D, B6304T4, TF-80SC AWD, R.H.D, B5254T5, TF-80SC, L.H.D Service and Repair





Remove the dashboard Refer to: Dashboard Dashboard

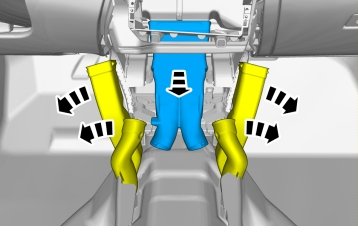

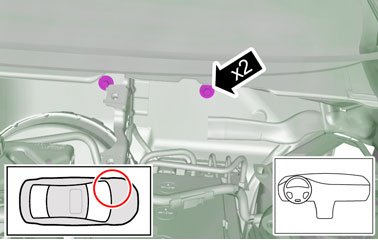

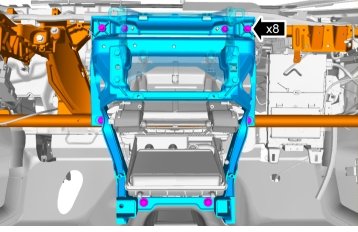

Torque: M8, 24 Nm

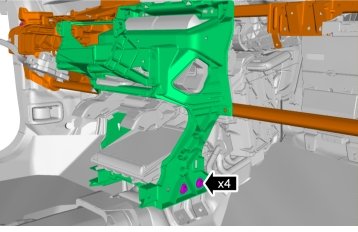

Torque: M6, 10 Nm





Note! Make sure that new components are installed.

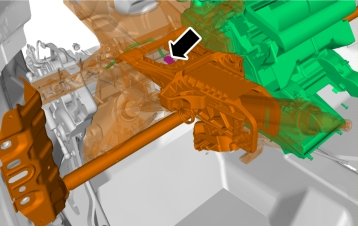

Torque: steering column to steering gear (steering shaft joint), 25 Nm

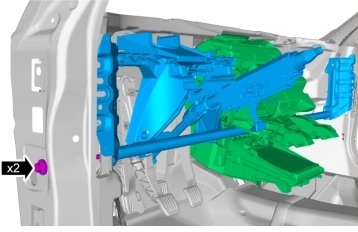

Torque: M8, 24 Nm




Torque: M10, 50 Nm

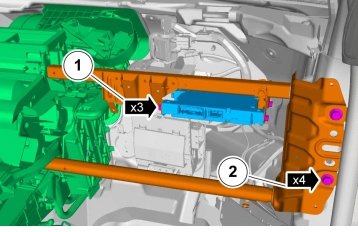

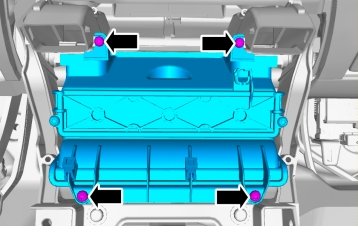

Remove the following items:
1. Torque: M6, 10 Nm

2. Torque: M8, 24 Nm









Installation

To install, reverse the removal procedure.
