Seat Belt Retractor, Rear

Operation number: 88408-2

Seat belt retractor, rear

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Disconnect the negative battery lead.

Information about handling and storage of pyrotechnic SRS components. Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Warning! Do not use measuring equipment on the supplemental restraint system (SRS) electrical connector.

Warning! Pyrotechnical SRS components must never be taken apart, repaired or transferred to another vehicle.

Remove the side panel. Refer to: Side panel load space Side Panel Loadspace

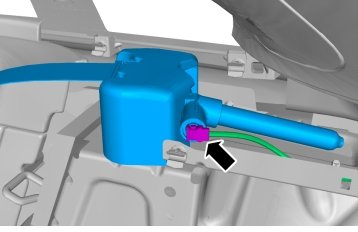

Remove connector. Refer to: Igniter wire connector Igniter Wire Connector

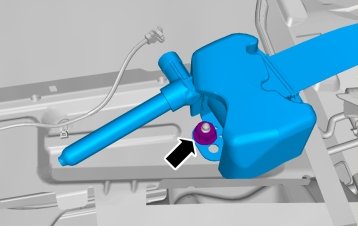

Torque: Safety belt retractor rear to body, 40 Nm

Installation

Install in reverse order.

Check belt function. Refer to: Seat belt function, check Testing and Inspection

Perform an inspection. Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
