Damper Motor Recirculation, Replacing

Actuator recirculation

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the glove compartment
Remove the glove compartment. See: Glove compartment Glove Compartment.

Removal

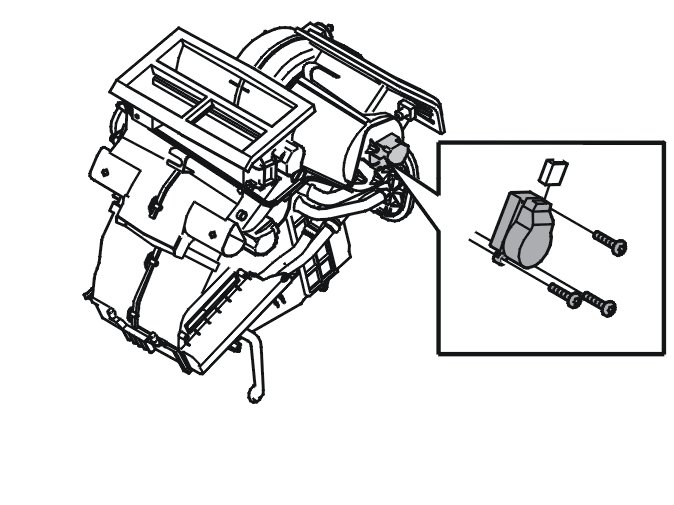

Removing the damper motor module (DMM) for recirculation




Disconnect the connector.

Hint: Using a small electrician's screwdriver, pry up the connector at the lock. Pull the connector off.

Remove:
- the 4 screws
- the control module.

Installation

Installing the damper motor module (DMM) for recirculation

Install:
- the control module in position. Adjust the shaft journal so that it goes in
- the 4 screws. Tighten crosswise
- the switch
- the glove compartment. See Glove compartment Glove Compartment.

Note! Identify the damper motor module (DMM) recirculation. See VIDA Vehicle communication.

Finishing

Testing the climate control system
Carry out a performance test on the climate control unit. See: Climate control system, check Climate Control System, Check.
