Actuator, Mixer Damper, L.H.D

Actuator, mixer damper

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Important information
The damper motor module (DMM) for air distribution is only on the left-hand side.

Removing the dashboard
Remove the dashboard. See: Dashboard Dashboard.

Removal

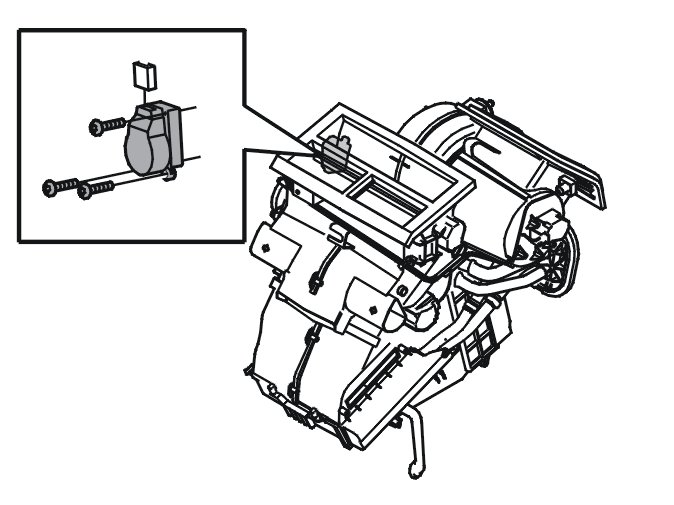

Removing the damper motor module (DMM) for air distribution




Disconnect the connector.

Hint: Using a small electrician's screwdriver, pry up the connector at the lock. Pull the connector off.

Remove:
- the 3 screws
- the control module.

Installation

Installing the damper motor module (DMM) for air distribution

Install:
- the control module in position. Adjust the shaft journal so that it goes in
- the 3 screws. Tighten crosswise
- the switch
- the dashboard. See: Dashboard Dashboard.

Note! Identify the damper motor module (DMM) air distribution. See VIDA Vehicle communication.

Finishing

Testing the climate control system
Carry out a performance test on the climate control unit. See: Climate control system, check Climate Control System, Check.
