Water Pump: Service and Repair

Coolant pump

Removal

Note! Removal steps in this procedure may contain installation details.

Perform cooling system draining, charging and bleeding Refer to: Cooling system - draining, charging and bleeding, B5254T7 Service and Repair

Remove timing belt Refer to: Timing belt, B5254T7 Service and Repair





Warning! Be prepared to collect escaping fluid.

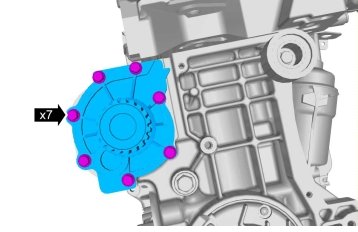

Torque: M7, 17 Nm

Installation

To install, reverse the removal procedure.
