Engine Block, Installing Components

Engine block, installing components

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Note! For tightening torques, see Tightening torques

Installation

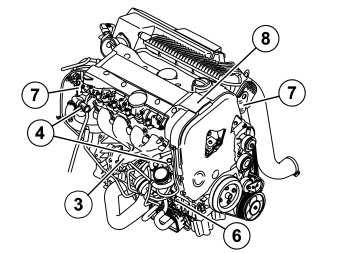

Installing parts on engine block

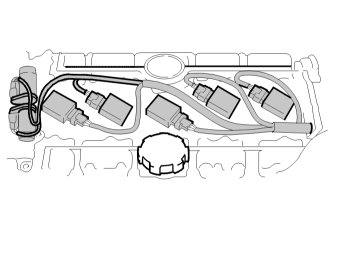

The ignition coils' direction and the routing of the cables are shown in the sketch.

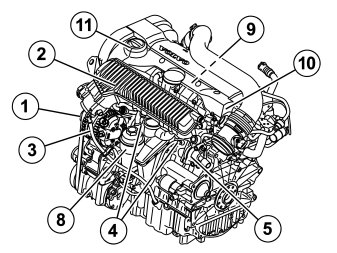

Installing parts on engine block, continued





Install:
- alternator, alternator bracket and auxiliary unit bracket
- thermostat housing with coolant hose
- the oil filter housing
- the knock sensors
- the ignition coils
- the camshaft sensor
- oil filler cap and the VVT-unit's control valves
- the crankcase ventilation hose
- complete cable harness engine
- the intake pipe
- oil dipstick tube

Installing parts on engine block, continued





Install:
- the oil cooler and the rubber seals.
- the coolant pipe (inlet to water pump) including hoses
- the bearing carrier for the right drive shaft.
- exhaust manifold including turbo with control hoses and valve
- Oil delivery pipe and coolant pipe (outlet to turbo)
- oil delivery pipe and coolant pipe (inlet to turbo)
- the lifting eyes
- upper and front timing gear casing
Fill oil.

Installing the flywheel/carrier plate
Install: Flywheel, B5254T7, M66 Service and Repair
Install: Carrier plate, B5254T7, AW55-50/51SN Service and Repair
