With Manual Transmission

Crankshaft seal, rear






Removal

Remove flywheel Refer to: Flywheel, B5254T7, M66 Service and Repair

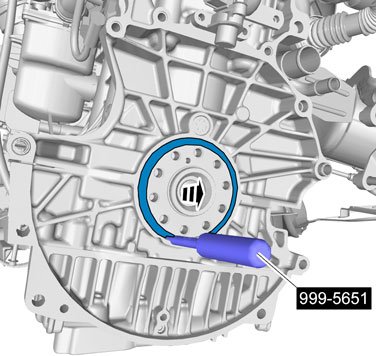

Caution! Take extra care not to damage the mating faces.

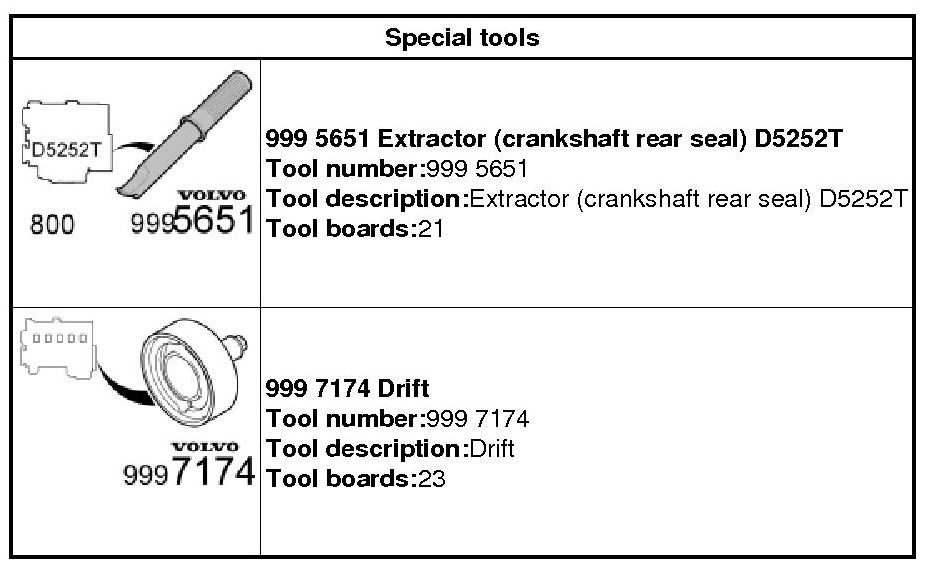

999 5651 Extractor 999 5651 Extractor

Installation





Caution! Make sure that the mating faces are clean and free of foreign material.

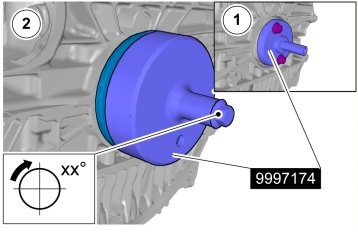

999 7174 Drift 999 7174 Drift

Install flywheel Refer to: Flywheel, B5254T7, M66 Service and Repair
