Front Crankshaft Seal: Service and Repair

Crankshaft front seal






Removal

Remove timing belt Refer to: Timing belt, B5254T7 Service and Repair

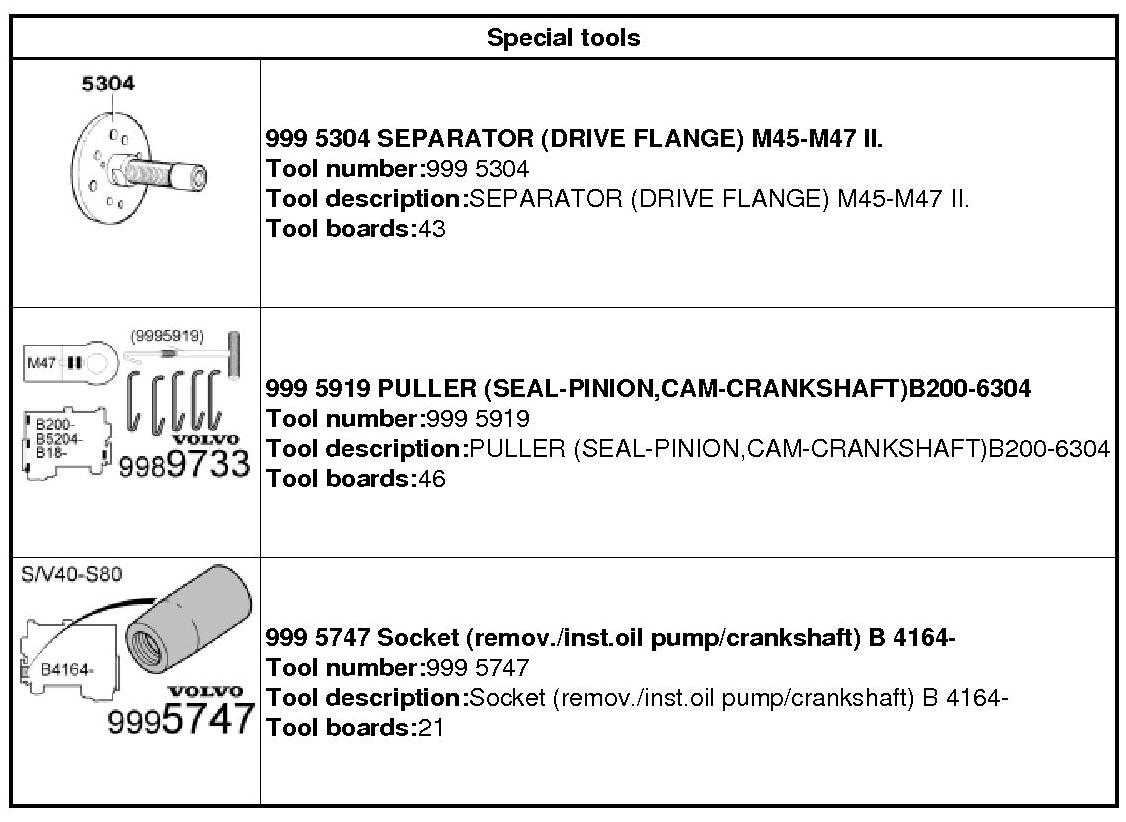

999 5304 SEPARATOR 999 5304 Separator




999 5919 PULLER 999 5919 Puller

Installation





Caution! Take extra care not to damage the seal.

999 5747 Socket 999 5747 Socket





Note! The component can only be installed in 1 position.

Install timing belt Refer to: Timing belt, B5254T7 Service and Repair
