Oil Pump: Service and Repair

Oil pump






Removal

Remove timing belt Refer to: Timing belt, B5254T7 Service and Repair

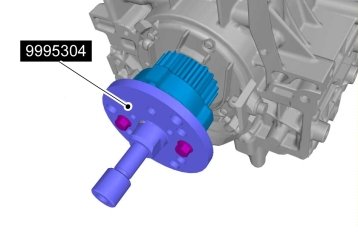

999 5304 SEPARATOR 999 5304 Separator

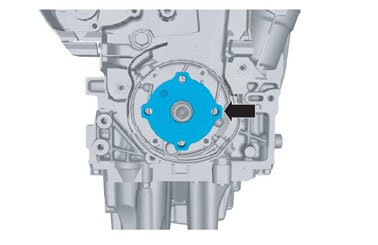

Warning! Be prepared to collect escaping fluid.

Installation

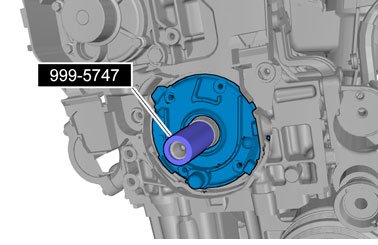

Caution! Take extra care not to damage the seal.

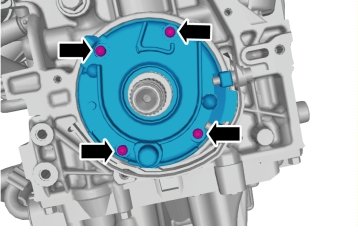

Torque: M6, 10 Nm





Note! The component can only be installed in 1 position.

Install timing belt Refer to: Timing belt, B5254T7 Service and Repair
