Inner Rear View Mirror

Operation number: 88210-2

Inner rear view mirror

Note! Some variation in the illustrations may occur, but the essential information is always correct.

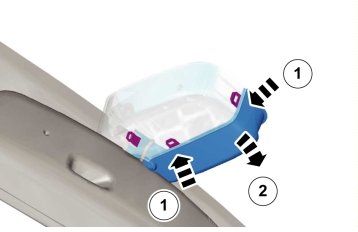

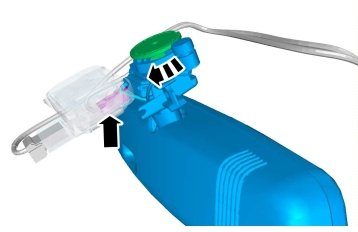

Removal











Note! Only twist the mounting.

Installation

To install, reverse the removal procedure

Note! If the mirror has a compass, the relevant geographical area must be set. Calibration must then be carried out.

Calibrate the compass. Refer to: Compass Calibration Service and Repair.
