Power Steering Fluid Cooler: Service and Repair

Oil cooler, power steering

Operation number: 64525-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

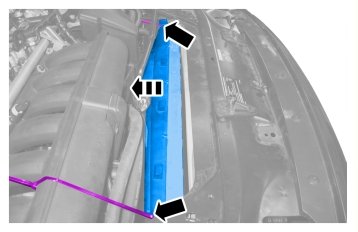

Remove the right headlight. Headlamps





Warning! Be prepared to collect escaping fluids.

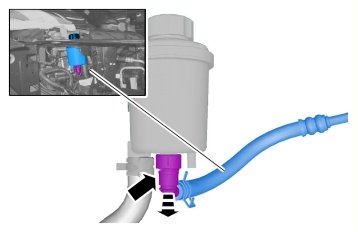

Drain the reservoir.

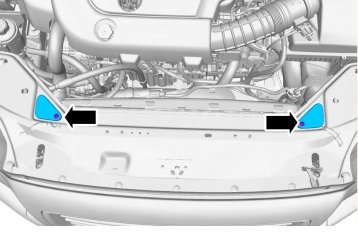

Use cable ties or similar and tighten the radiator to the engine 30-40 mm.

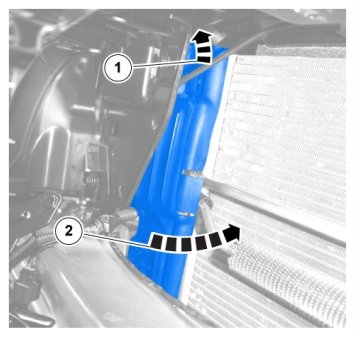

Remove the front bumper shell. Service and Repair

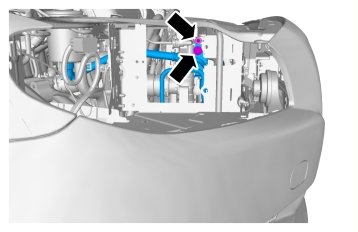

Warning! Be prepared to collect escaping fluids.

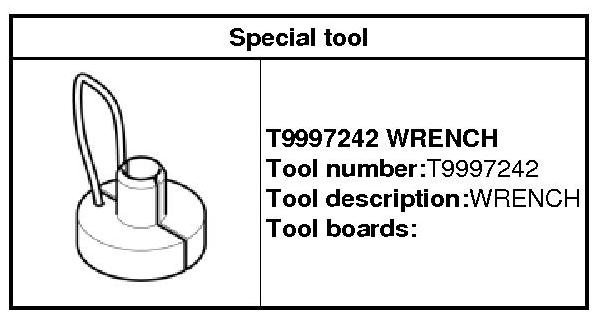

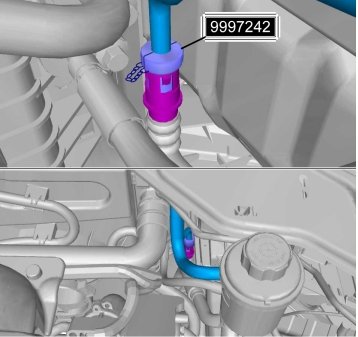

999 7242 Wrench 999 7242 Wrench

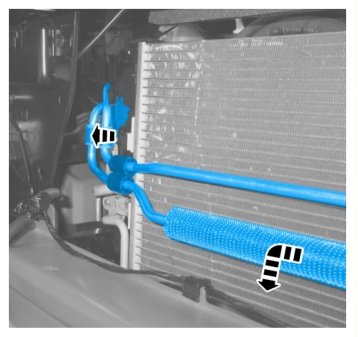

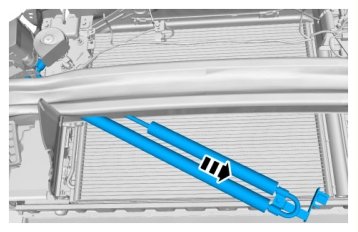

Warning! Be prepared to collect escaping fluids.





Installation

Install in reverse order.

Fill with power steering fluid and bleed the system. Service and Repair
