Expansion Valve: Service and Repair

Expansion valve

Operation number: 87436-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

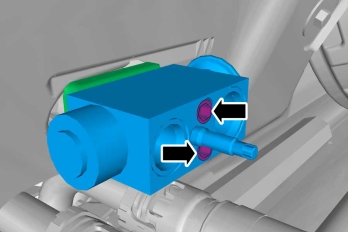

Remove the pipes and hoses from the expansion valve. Refer to: Thermostatic Expansion Valve to Connector Block Line, B6304T2 Thermostatic Expansion Valve to Connector Block Line




Torque: Refrigerant pipe to expansion valve , 4.5 Nm

Installation

Change and lubricate the O-rings with compressor oil.

To install, reverse the removal procedure
