Brake Disc Front, Checking

Brake disc front, checking

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the brake caliper. Refer to: Front brake caliper Front Brake Caliper.

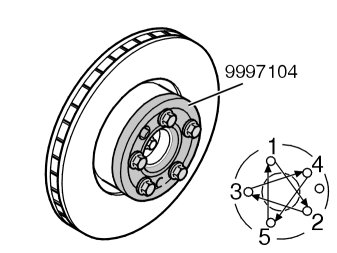

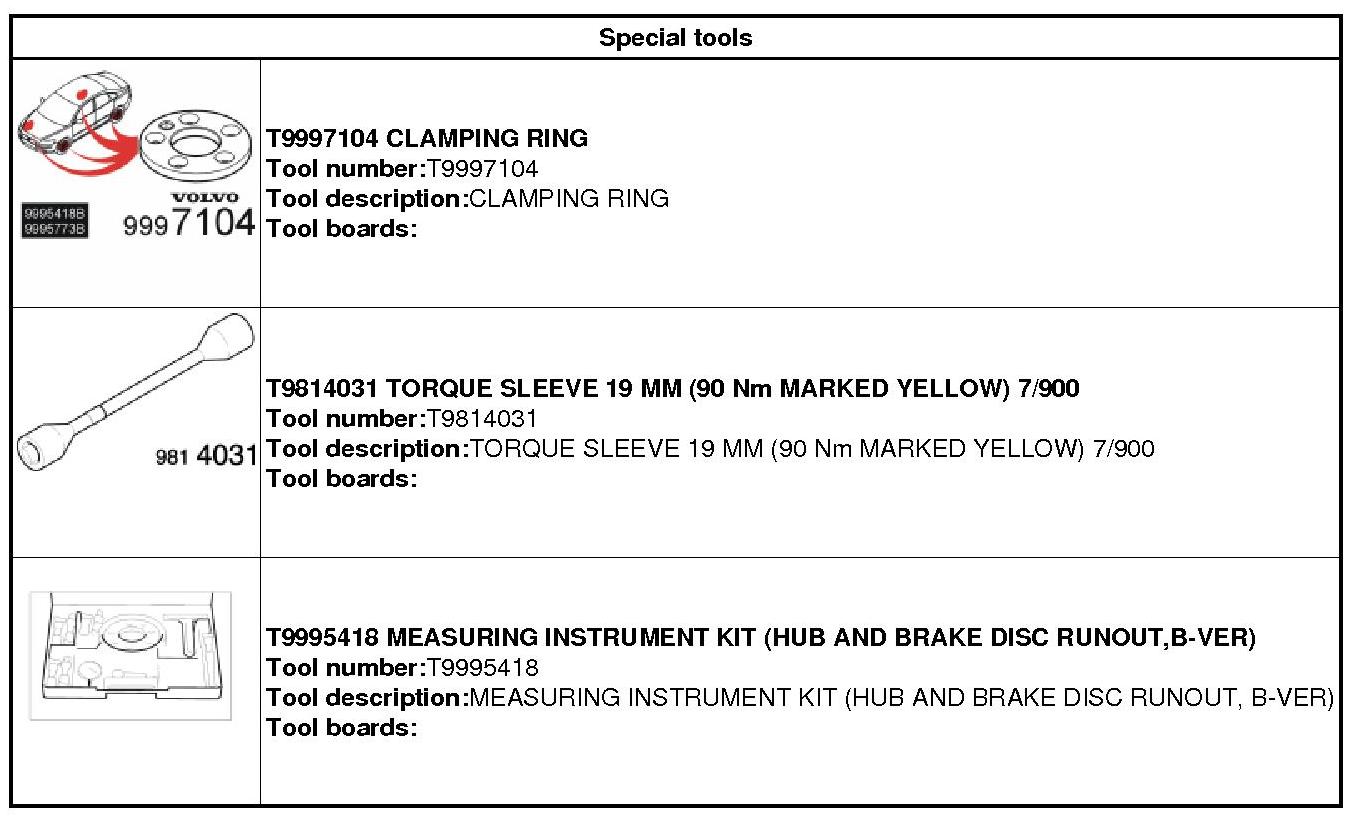

999 7104 Clamp ring 999 7104 Clamp Ring.
Make sure that the contact surfaces of the brake disc and clamping ring are clean. Fit the screws, but only tighten slightly.
Tighten crosswise to 90 Nm. 981 4031 Torque socket 19 mm 981 4031 Torque Socket 19 mm




999 5418 Measuring kit 999 5418 Measuring Kit
Fit the bracket that is part of the measuring equipment. Use M12x40 wing screws and M12 nuts from the kit.

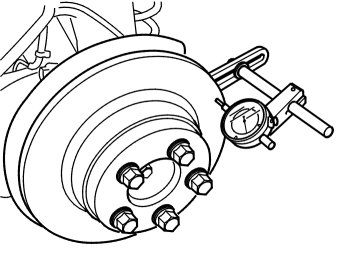

Fit the dial indicator in the bracket. Position the dial indicator's tip toward the brake disc.
Slowly rotate the brake disc. The maximum lateral runout of the hub should not exceed 0.02 mm.
If lateral runout exceeds 0.02 mm, replace the brake disc. Refer to: Front brake disc Front Brake Disc.

Note! Always check the wheel hub's lateral runout before installing a new brake disc. Refer to: Wheel hub front, checking Wheel Hub Front, Checking.

Installation

To install, reverse the removal procedure
