Checking Selector Switch, Tailgate

Checking selector switch, tailgate

Checking the function




- Ignition on
- Check the function of the switch on the tailgate by clicking on the VCT2000 symbol
- Press in the tailgate switch.
The value should be Activated when the switch is pressed in.

Hint: If the switch status is activated when the switch is not pressed in, the fault is either in the switch or in the cable from the switch to the keyless vehicle module (KVM).









Is the function OK?

Yes - Verify

No - Checking the wiring

-------------------------------------------------

Checking the wiring








- Ignition off.

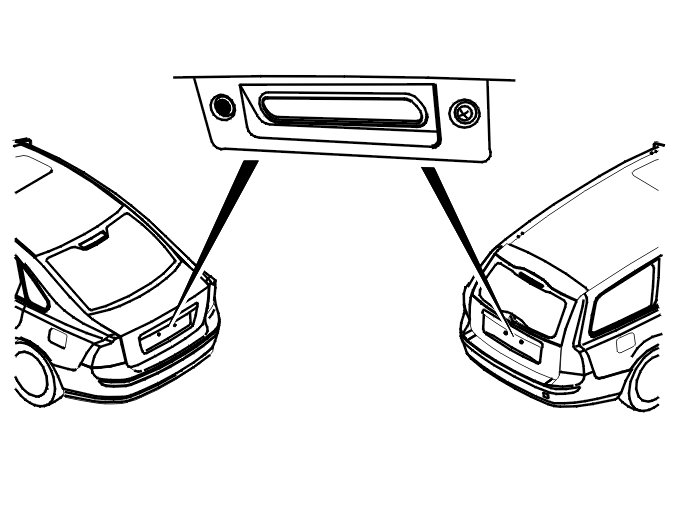

Disconnect the connector at the switch for opening the tailgate. Check whether the switch has stuck in the activated position by taking a reading between terminals. Use an ohmmeter. The resistance must be infinite. If the resistance is 0ohms - replace the switch.
Check the cable between the keyless vehicle module (KVM) and the tailgate switch.
Check the cable between the switch and ground. Check for an open-circuit. Check for a short-circuit to ground.
For information about terminals and cable routing see the relevant wiring diagram.
Remedy as necessary.

Other information
- Connecting the breakout box Connecting The Breakout Box, Keyless Vehicle Module (KVM)
- Signal specification Signal Description, Keyless Vehicle Module (KVM)
- Door latch, luggage compartment lid Service and Repair
- Checking wiring and terminals Checking Wiring and Terminals






Continue - Verify

-------------------------------------------------

Verify

Hint: After carrying out the repair, check that the fault has been remedied.




- Ignition off
- Reinstall the connectors, components etc.
- Ignition on
- Check the function of the switch on the tailgate by clicking on the VCT2000 symbol
- Press in the tailgate switch.
The value should be Activated when the switch is pressed in.





Is the function OK?

Yes - FAULT FOUND

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should be diagnosed and remedied. Since this is not the case the fault-tracing process has failed.
Complete the fault-tracing for those fault or try again.

Do you want to terminate fault-tracing at this time?

Yes - FAULT-TRACING FAILED

No - Attempt New Test

------------------------

FAULT-TRACING FAILED - FAULT-TRACING FAILED

Attempt New Test - Checking the function

-------------------------------------------------
