Horn: Service and Repair

Horn

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

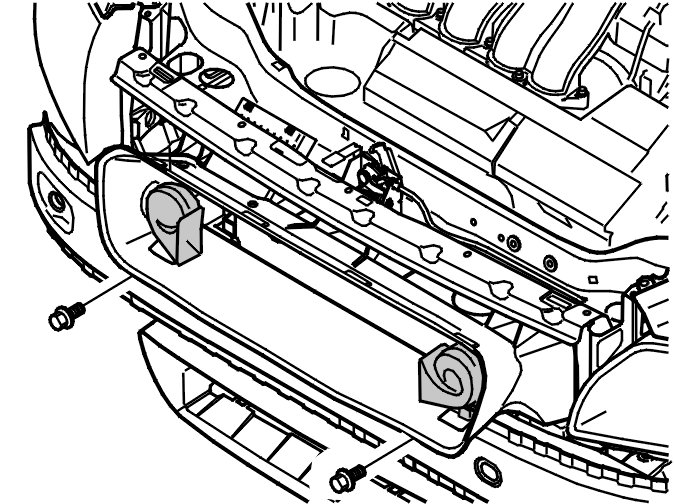

Removing the horn





Remove:
- the front bumper according to: Cover bumper front Service and Repair
- the 1 M6 screw
- the connector
- the horn.

Installation

Note! For tightening torques, see: Specifications. [1][2]Specifications

Installing the horn

Install:
- the horn
- the 1 M6 screw
- the connector
- the front bumper. See: Cover bumper front Service and Repair
