Roof, Checking Sealing

Roof, checking sealing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Check

Roof, integrity check




Rinse with lots of water when checking for leaks.

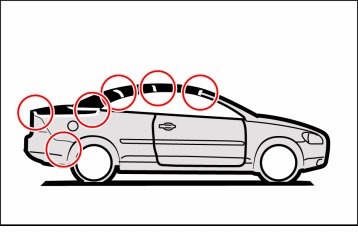

Check extra carefully at the points indicated in the figure.
In case of leakage, see: Roof, adjusting Adjustments.

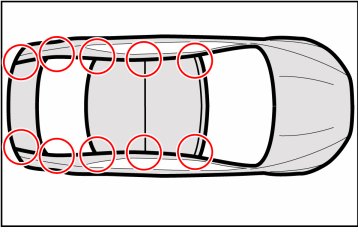

In case of leakage at indicated positions in the figure, see:
1. seal strips roof bow/A-pillars: Header Rail Weatherstrip Header Rail Weatherstrip
2. roof panel middle: Roof panel middle Roof Panel Middle
3. trunk lid: Luggage Compartment Lid Service and Repair
4. check installation of the bumper: Cover bumper rear Service and Repair
5. seal strip luggage: Weatherstrip cargo compartment Service and Repair
6. seal strip rear roof panel: Convertible Top Rear Panel Side Weatherstrip Convertible Top Rear Panel Side Weatherstrip
7. side windows: Side window rear, adjusting Side Window Rear, Adjusting and Window, side door, adjustment Window, Side Door, Adjustment.
