Roof Panel Rear

Roof panel rear

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal

If emergency opening is necessary, see Convertible Top Alternative Opening Procedure Convertible Top Alternative Opening Procedure.
Remove the rear windows described in Rear windscreen Service and Repair.









Note! Mark all positions to facilitate installation.

Remove the pop rivets according to: Removing rivets .

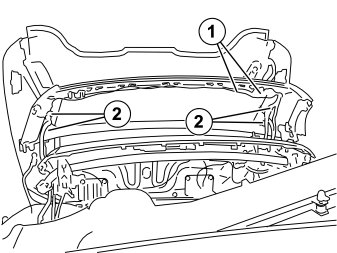

Remove the rear roof panel following the steps illustrated.

Installation

Note! For tightening torques, see Specifications. [1][2]Body and Frame.

Install the rear roof panel in reverse order.
Adjust the roof as described in Roof, adjusting Adjustments.
Install the rearwindowss described in Rear windscreen Service and Repair.
