Seal, Drive Shaft, Replacing

Seal, drive shaft, replacing

Special tools:
999 1801 Standard Shaft 999 1801 Standard Shaft
999 5729 Drift 999 5729 Drift
999 5730 Drift 999 5730 Drift
999 5731 Puller 999 5731 Puller
999 5732 Puller 999 5732 Puller

Left-hand side

Preparations
See and Half shaft, left, replacing Drive Shaft Left, Replacing

Remove the drive shaft seal

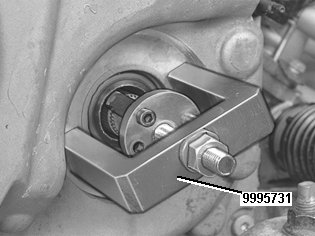

Use puller 999 5731 PULLER 999 5731 Puller.
Unscrew the puller. Install a hook gradually between the shaft and sealing ring.
Secure the hooks to the puller. Tighten them using the screws.
Install the mounting bracket and the nut.
Extract the sealing ring.

Install the drive shaft seal





Note! Clean thoroughly before installing the new seal

Apply a small amount of grease to the sealing lip.

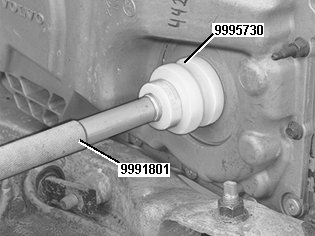

Use drift 999 5730 Drift 999 5730 Drift and shaft 999 1801 STANDARD SHAFT 999 1801 Standard Shaft.
Carefully tap the drive shaft seal in until the drift is in contact with the transmission housing.

Install the drive shaft in the transmission

Right-hand side

Preparations
See, Drive shaft right, replacing Drive Shaft Right, Replacing. For cars with viscous couplings, see Seal CV Joint Housing, Replacing

Remove the drive shaft seal




Use puller 999 5732 Puller 999 5732 Puller.
Unscrew the puller. Install a hook gradually between the shaft and sealing ring.
Secure the hooks to the puller. Tighten them using the screws.
Install the mounting bracket and the nut.
Extract the sealing ring.

Install the drive shaft seal





Note! Clean thoroughly before installing the new seal

Apply a small amount of grease to the sealing lip.
Use drift 999 5729 Drift 999 5729 Drift.
Carefully tap the drive shaft seal in until the drift is in contact with the transmission housing.

Install the drive shaft in the transmission
See (cars with viscous couplings), Drive shaft right, replacing Drive Shaft Right, Replacing and .
