Bulb Headlamp, Replacing

Bulb headlamp, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Other information

To replace headlamps, see Headlamp/bulb, replacing Headlamp/Bulb, Replacing.

Method content

This method consists of:
- replacing
- vehicles with halogen lamps, replacing
- vehicles with Bi-Xenon lamps, replacing
- replacing

Preparatory work

Ignition off




Ignition off.
Switch off the lighting switch.

Location of components




1. Turn signal lamps
2. Parking lamps, applies to vehicles equipped with halogen lamps
3. Parking lamps apply to cars with Bi-Xenon lamps
4. Dipped beam
5. High beam.

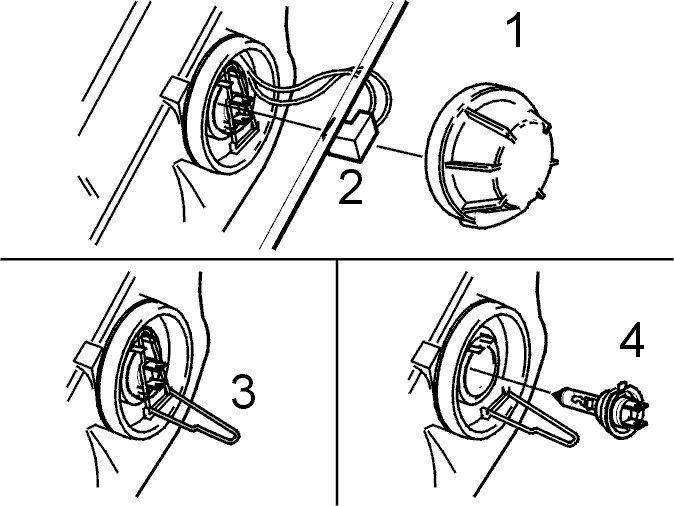

Bulb high and low beam, replacing

Bulb high and low beam, removing

Note! For vehicles with Bi-Xenon lamps, see Bi-Xenon lamps, replacing Bi-Xenon Lamps, Replacing.





Remove:
- the cover (1)
- the connector (2)
- the spring clip by pressing forward to the right. Then fold backwards and downwards (3)
- the bulb (4).

Bulb high and low beam, installing

Install:
- the bulb (4)
- the spring clip (3)
- the connector (2)
- the cover (1).

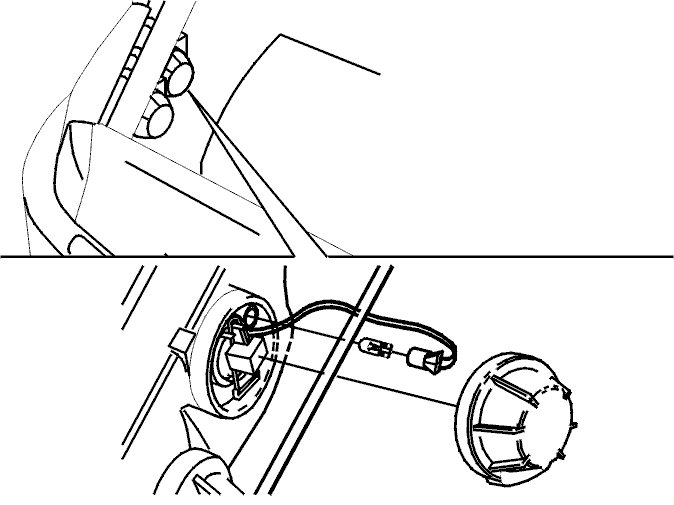

Parking lamps, vehicles with halogen lamps, replacing

Removing the parking lamps, vehicles with halogen lamps





Remove:
- the cover. Turn to remove
- the bulb holder by pulling straight out
- the bulb.

Installing the parking lamps, vehicles with halogen lamps

Install:
- the bulb
- the bulb holder
- the cover.

Parking lamps, vehicles with Bi-Xenon lamps, replacing

Removing parking lamps, vehicles with Bi-Xenon lamps





Remove:
- the turn signal lamps. See Turn signal lamps, replacing Service and Repair
- the bulb holder. Turn the bulb holder to remove
- the bulb.

Installing parking lamps, vehicles with Bi-Xenon lamps

Install:
- the bulb
- the holder
- the turn signal lamps. See Turn signal lamps, replacing Service and Repair.

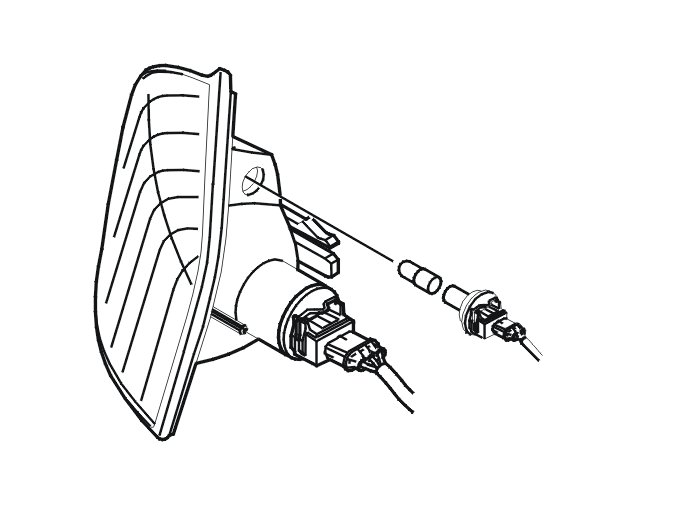

Bulb turn signal lamps, replacing

Bulb turn signal lamps removing / installing
Replace the bulb. See Turn signal lamps, replacing Service and Repair.
