Evaporator Core: Service and Repair
Evaporator, replacing
Removal
Evaporator
Begin with the dashboard. See Dashboard, replacing Dashboard, Replacing.
The climate control unit. See Climate control unit, replacing, L.H.D Service and Repair
Remove:
- the inner and outer seals for the pipe lead-ins.
Remove:
- the retaining clip and pipe from the heat exchanger.

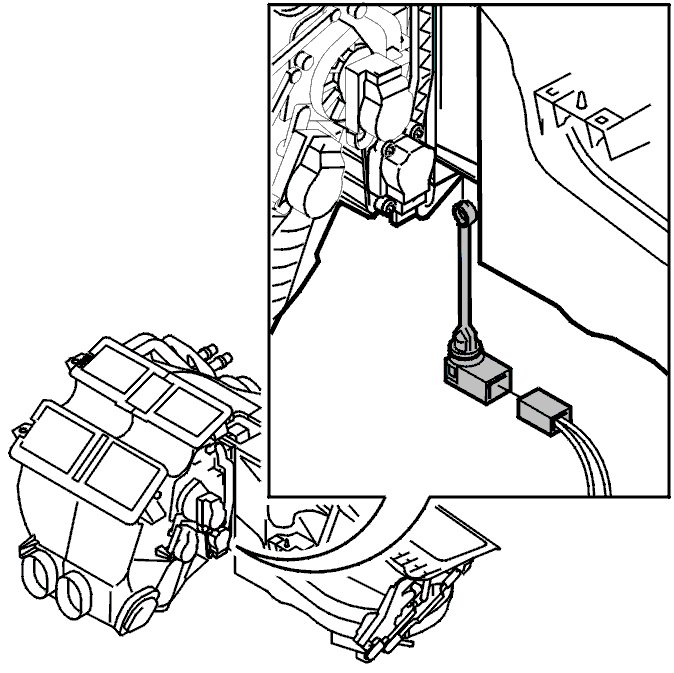

Remove:
- the sensor.

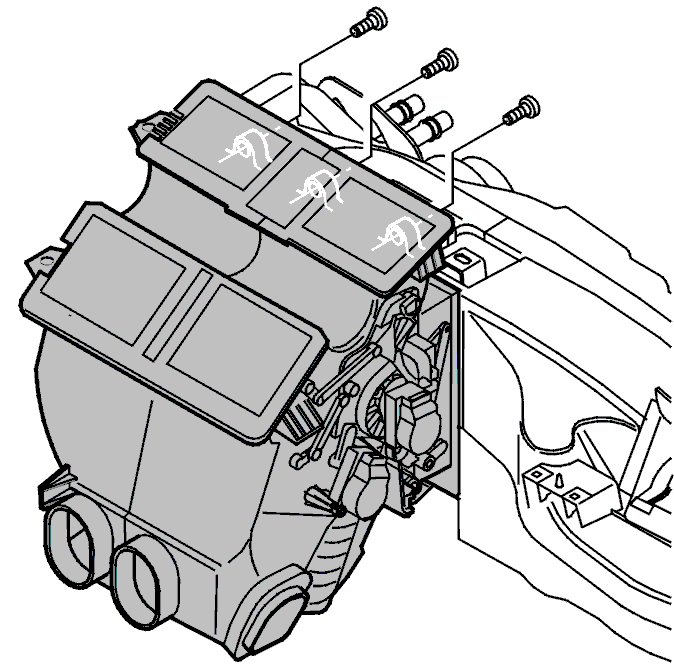

Remove:
- the 4 screws for the air cleaner (ACL) and cover.
Remove:
- the 3 screws for the central electrical unit.
Fold out the central electrical unit. Remove the seal
Remove:

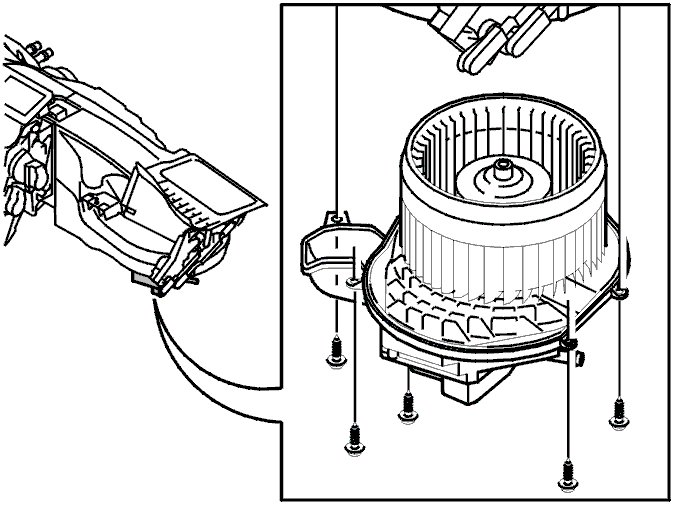

- the blower fan motor cover, (1 screw)
- the blower fan motor (4 screws).
Remove:
- the screw for the bracket for the recirculation motor.
Loosen:

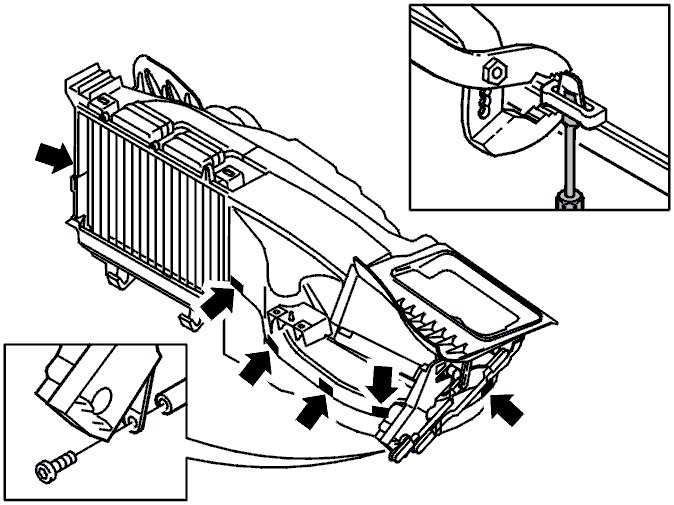

- the catches for the divisions of the upper and lower sections using a screwdriver and pipe wrench as illustrated. Start at one end.
- Lift off the lower section

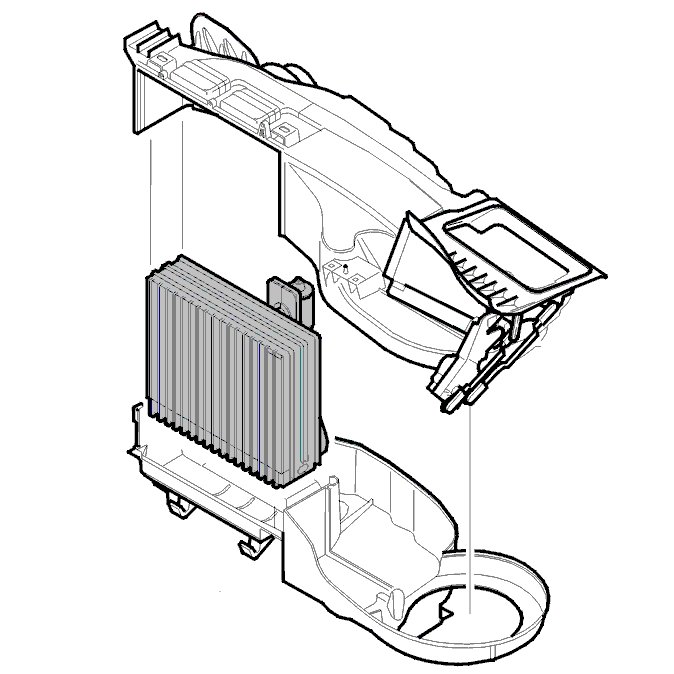

- Lift out the evaporator.
Remove:
- the expansion valve, (2 screws)
- the expansion valve block
- the seal.
Installation
Evaporator
Install:
Note! Use new O-rings lubricated with compressor oil.
- O rings on the evaporator pipe
- the expansion valve.
- Position the evaporator in the upper fan housing
- Check that the seal sits in the correct groove at the expansion valve
- Install the lower fan housing. Press so that the mounting lugs are in line with the upper half
- Ensure that the mounting lugs line up
- Check that the seal sits in the correct groove at the expansion valve
- Press the upper fan housing into the lower
- Check that the upper fan housing is secured to the lower
- Install new retaining clips around the fan housing to ensure a good seal.
Install:
- the central electrical unit seal
- the central electrical unit. Screw it into place
- the air cleaner (ACL) and cover
- new inner and outer seals for the pipe lead-ins around the heat exchanger-refrigerant pipes.
Install:
- the climate control unit. See Climate control unit, replacing, L.H.D Service and Repair
- the dashboard in the car. See Dashboard, replacing Dashboard, Replacing.
