Audio Module

Audio Module

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.
Fold out the left side panel in the cargo compartment. See: Side panel loadspace Side Panel Loadspace

Removal

Removing the control module

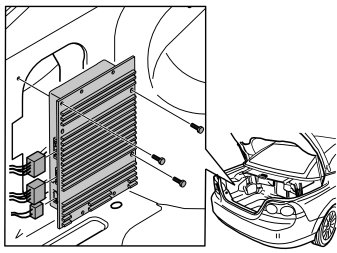

Remove:
- the 3 x M6 nuts
- the control module
- the connectors.

Installation

Installing components

Note! For tightening torques, see Tightening torque [1][2]Body and Frame

Note! Check that there is no dirt in the optical connectors.

Install in the reverse order.

Note! After replacing the audio module (AUD), new software must be ordered and the module programmed.

Finishing

Ordering software and programming
Program the new control module. Programming and Relearning
