Trim Molding, Sill Trim Molding

Trim molding, sill trim molding

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the sill molding




Remove the sill molding as described in Sill edge Sill Edge.
Detach the weatherstrip.

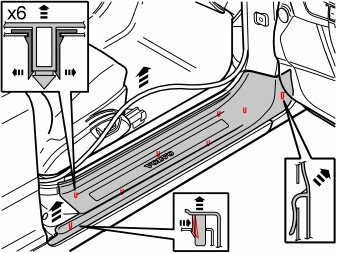

Lift up the decor strip. It is attached with 6 clips and 2 hooks.

Hint: Begin detaching the strip along the rear edge.

Installation

Installing the sill molding

Note! For tightening torques, see Specifications. [1][2]Body and Frame.

Install in the components in reverse order.
