Outside Temperature Sensor Door Mirror, Replacing

Outside temperature sensor door mirror, replacing

Note! For model years 2004- (S60, S80 and V70 2000- except XC70 and XC90) see Model years 2004-.

Removal

Preparatory work

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Ignition off.

XC70
Remove the door mirror. See Rearview mirror, replacing Rearview Mirror, Replacing.
V70 2000-, S60
Remove the door mirror. See Replacing the mirror Door Mirror, Replacing.

Removing the outside temperature sensor

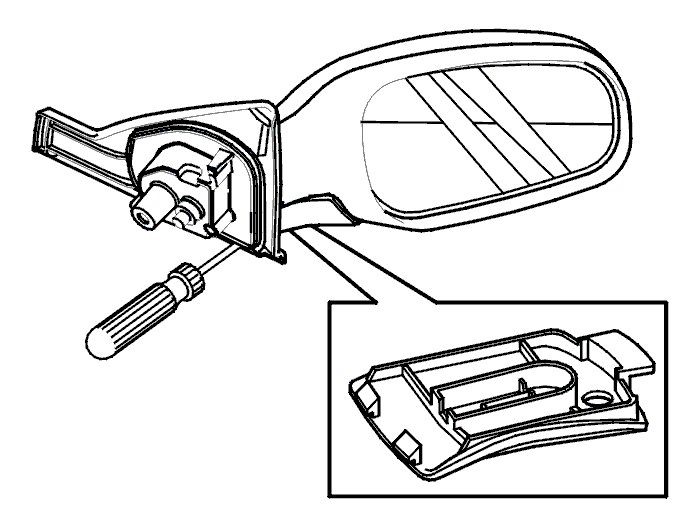

- Remove the temperature sensor using a screwdriver as illustrated
- Disconnect the terminal pin from connector
- Remove the temperature sensor.

Installation

Installing the outside temperature sensor
Route the cable for the temperature sensor to the connector.
Install the terminal pin in the connector.
Press the temperature sensor in the door mirror.

Finishing work

XC70
Remove the door mirror. See Rearview mirror, replacing Rearview Mirror, Replacing.
V70 2000-, S60
Install the door mirror. See Replacing the mirror Door Mirror, Replacing.

Model years 2004-

Preparatory work
Ignition off.
Remove the door mirror. See Door mirror, replacing Service and Repair.

Removal

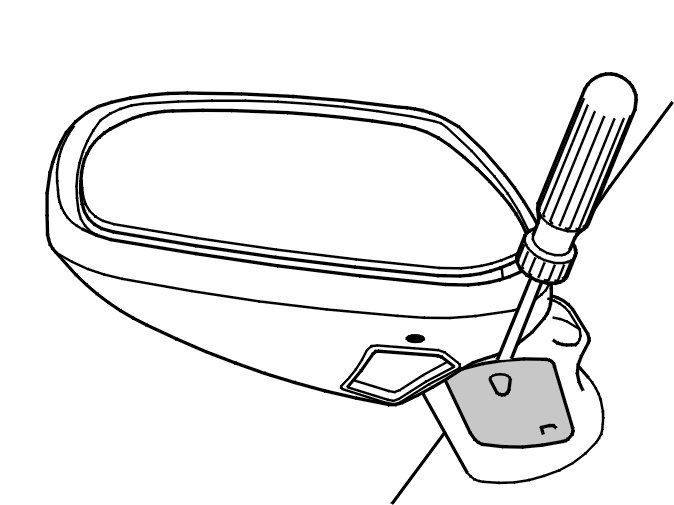

Remove the temperature sensor using a screwdriver as illustrated

Remove:
- the connector
- the terminal pins from the connector
- the temperature sensor.

Installation




Route the cable for the temperature sensor to the connector.

Install:
- the cable terminals in the connector
- the connector
- the temperature sensor in the door mirror
- the door mirror. See Door mirror, replacing Service and Repair.
