Trailer Lighting Module: Service and Repair

Trailer Module (TRM)

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.
Fold out the rear right-hand side panel in the cargo compartment. See: Side panel loadspace Side Panel Loadspace.

Removal

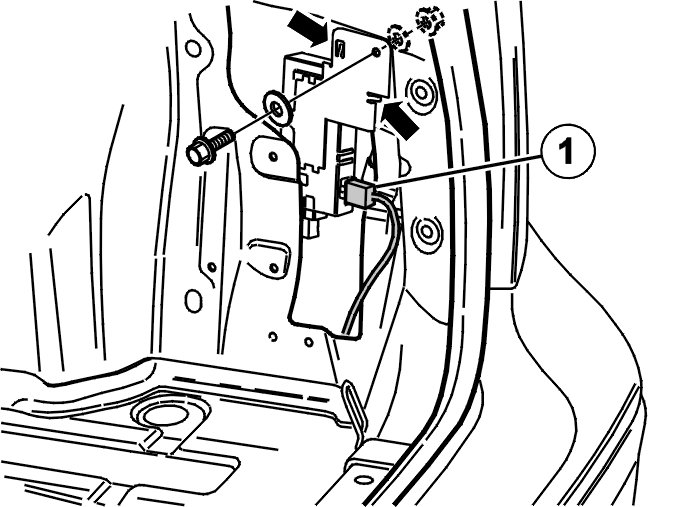

Removing the trailer module (TRM)





Remove:
- the screw together with the nut
- the connector
- the control module.

Installation

Installing the trailer module (TRM)

Install:
- the control module. Align the bracket with the relevant locating pins and holes in the bodywork
- the screw together with the nut
- the rear right side panel in the cargo compartment. See: Side panel loadspace Side Panel Loadspace.

Finishing

Ordering software
Order applicable software. Software Downloading
