Subwoofer Module (SUB)

Subwoofer module (SUB)

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.
Fold the left-hand backrest forward.

Removal

Removing subwoofer module (SUB)





Remove:
- the left-hand cargo compartment side panel. See: Side panel loadspace Side Panel Loadspace Side panel loadspace Side Panel Loadspace

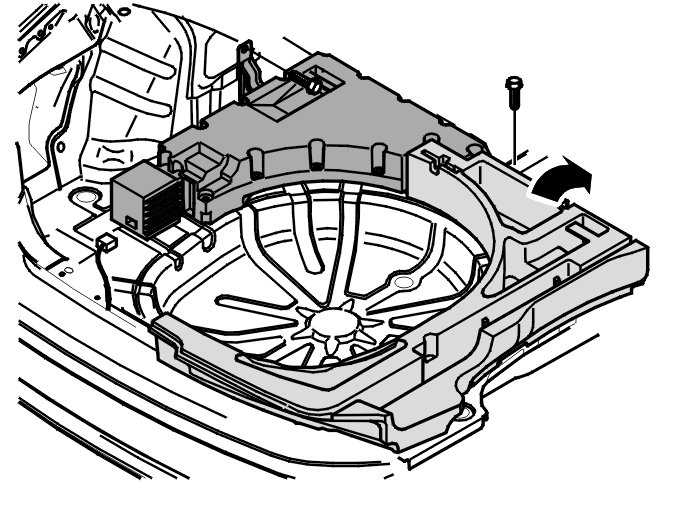

- the floor support spacer, 4 clips
- the connectors
- the 2 M6 screws
- the subwoofer module (SUB).

Installation

Note! For tightening torques, see Specifications. [1][2]Specifications

Installing subwoofer module (SUB)

Install:
- the subwoofer module (SUB)
- the 2 M6 screws.

Note! Check that there is no dirt in the optical connectors. The bend radius of the optic cables must not be less than 25 mm.

Install:
- the connectors
- the floor support spacer, 4 clips
- the left-hand cargo compartment side panel. See: Side panel loadspace Side Panel Loadspace Side panel loadspace Side Panel Loadspace

Finishing

Note! After replacing the subwoofer module (SUB), new software must be ordered and programmed.

Ordering software
Order software. See: Software Downloading
