Audio Module

Audio Module

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.

Removal

Removing the audio module (AUD)




Push the cargo compartment side panel to one side. See: Side panel loadspace Side Panel Loadspace.

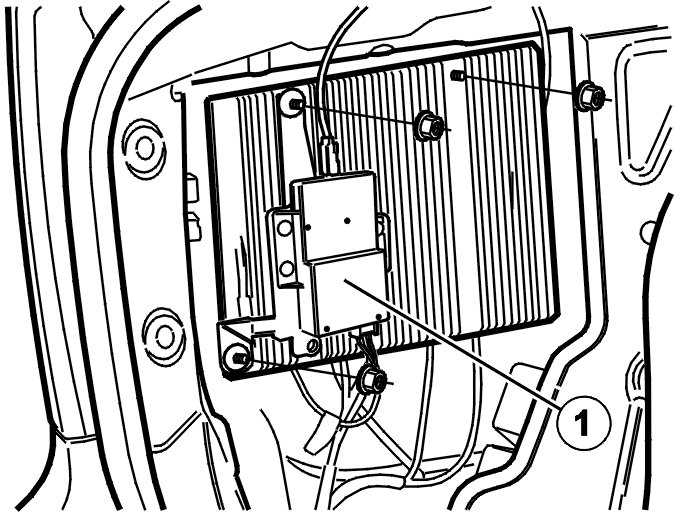

Remove:
- the 3 M6 nuts
- the control module.
Disconnect the connectors.

Note! If the vehicle is equipped with global positioning system module (GPS) (1), it must be transferred to the new audio module (AUD).

Installation

Note! For tightening torques, see Specifications. [1][2]Specifications

Installing the audio module (AUD)

Note! Check that there is no dirt in the optical connectors.

The bend radius of the optic cables must not be less than 25 mm.

Install:
- the connectors
- the control module.
- 3 M6 nuts.
Install the cargo compartment side panel. See: Side panel loadspace Side Panel Loadspace.

Finishing

Note! After replacing the audio module (AUD), new software must be ordered and programmed.

Ordering software
Order software. See: 30667194.
