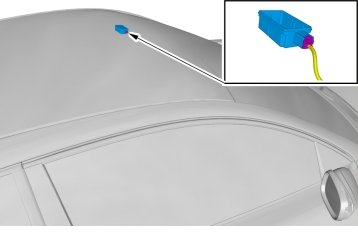

Receiver Lock System Keyless Entry (RKE)

Receiver lock system keyless entry (RKE)

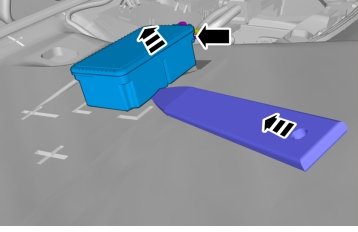

Removal

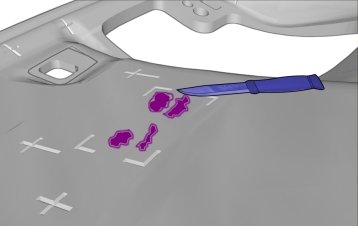

Loosen leading edge of headlining Refer to: Headlining with sun roof Service and Repair Headlining with sun roof Service and Repair Headlining with sun roof Service and Repair Headlining with sun roof Service and Repair Headlining with sun roof Service and Repair









Caution! Take extra care not to crease the headliner.

Installation

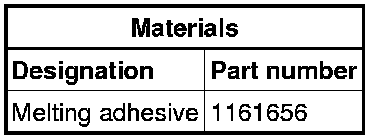

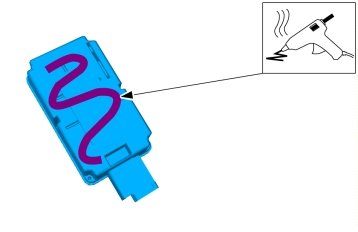

Use: Melting adhesive, 1161656

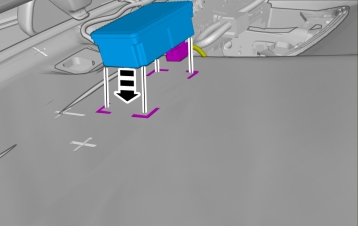

To install, reverse the removal procedure.
