Leak Detection Pump: Service and Repair

Pump leak diagnostic, replacing

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the carbon filter container
Remove the carbon filter container. See Carbon filter container, replacing, B5234T9, B5244T7 Service and Repair.

Removing the leak diagnostic pump




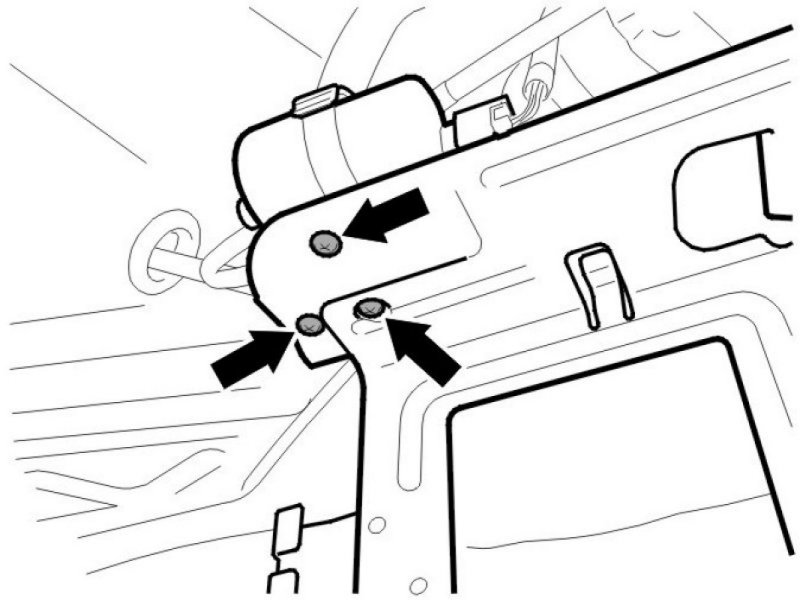

Remove the 3 screws.

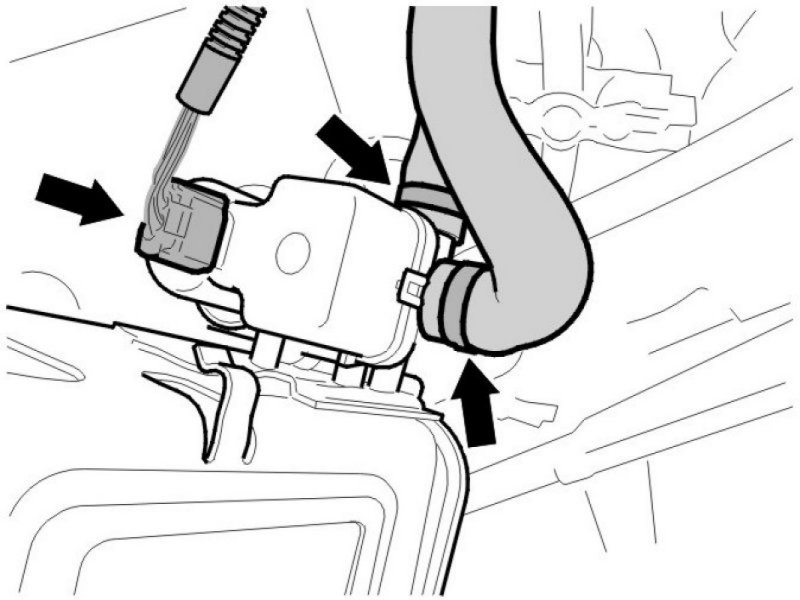

Remove:
- the connector
- the 2 hoses.

Installation

Installing the leak diagnostic pump

Install:
- the connector
- the 2 hoses
- the 3 screws.

Installing the carbon filter container
Install the carbon filter container. See Carbon filter container, replacing, B5234T9, B5244T7 Service and Repair.
