Air Flow Meter/Sensor: Locations






Engine compartment

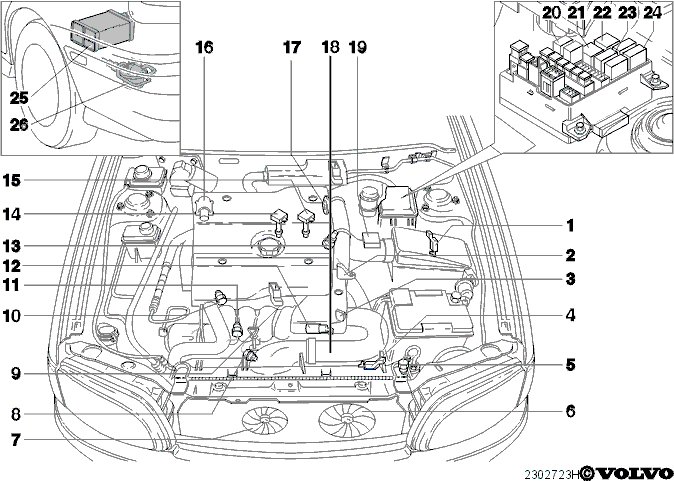

Component Location, Engine Compartment (Part 1):

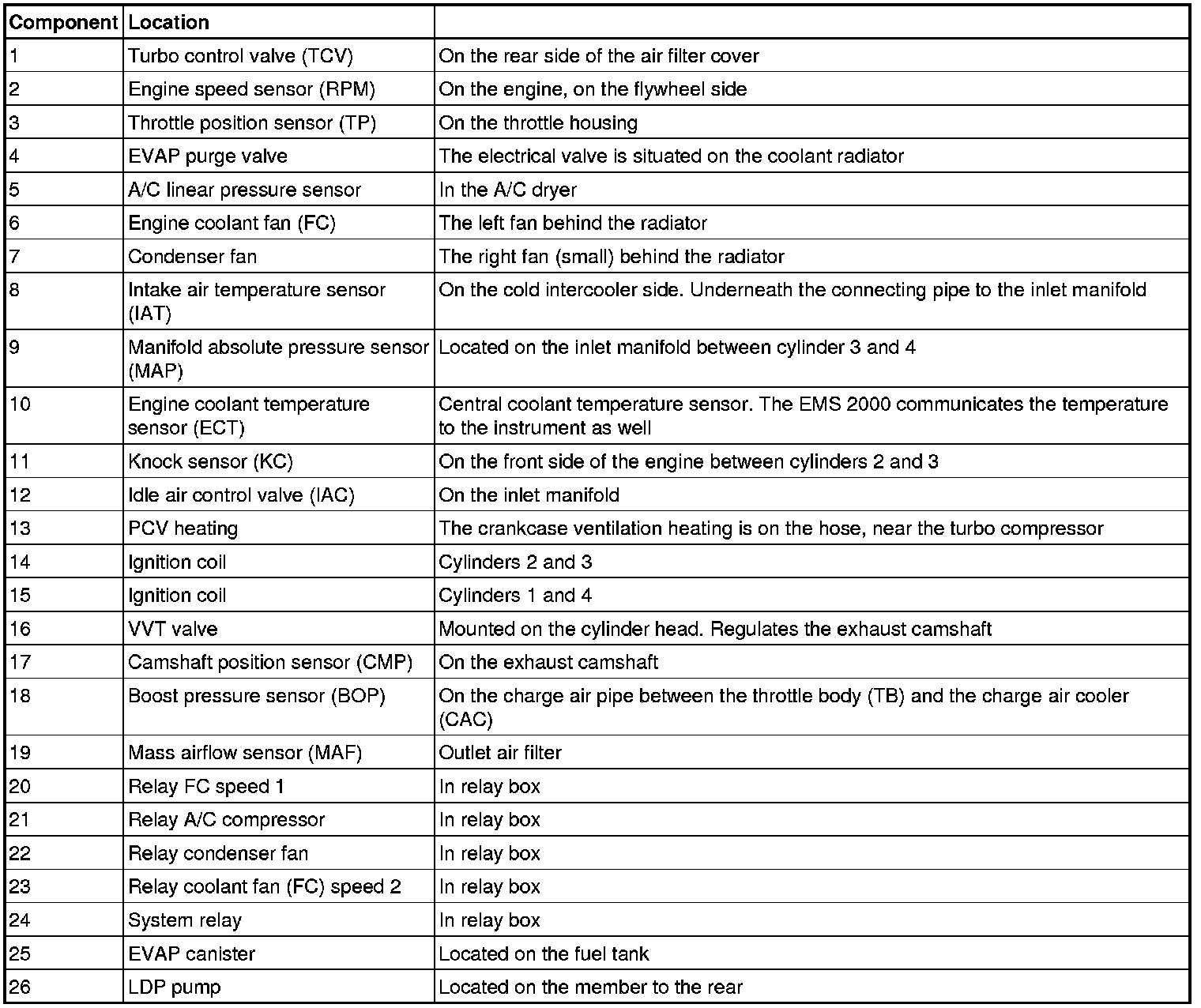

Component Location, Engine Compartment (Part 2):
