INTEGRATED RELAY/FUSEBOX, ENGINE COMPARTMENT, REPLACING




Identifying the integrated relay/fusebox in the engine compartment

For the location of the relays and fuses, see;
- Wiring diagram for relevant model year
- Decals at both the integrated relay box and fusebox in the car
- Pocket data book
- Owner's Manual.

Select the relevant integrated relay/fusebox

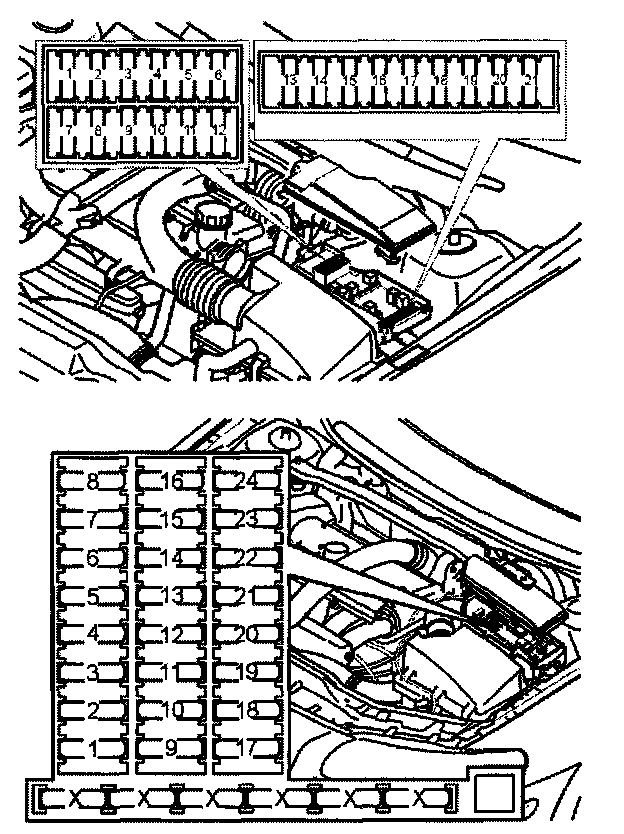

For integrated relay/fuseboxes with 21 fuses, With 21 Fuses

For integrated relay/fuseboxes with 24 fuses, With 24 Fuses
