Replacing Blower Fan Motor

Replacing blower fan motor

Replacing blower fan motor

Removing blower fan motor




- Ignition off.
- Remove glove compartment according to Interior, exterior Panel and SRS passenger airbag module Panel and SRS Passenger Airbag Module.
- Remove soundproofing panel according to Interior, exterior Dashboard Dashboard.
- Remove knee bolster/member.

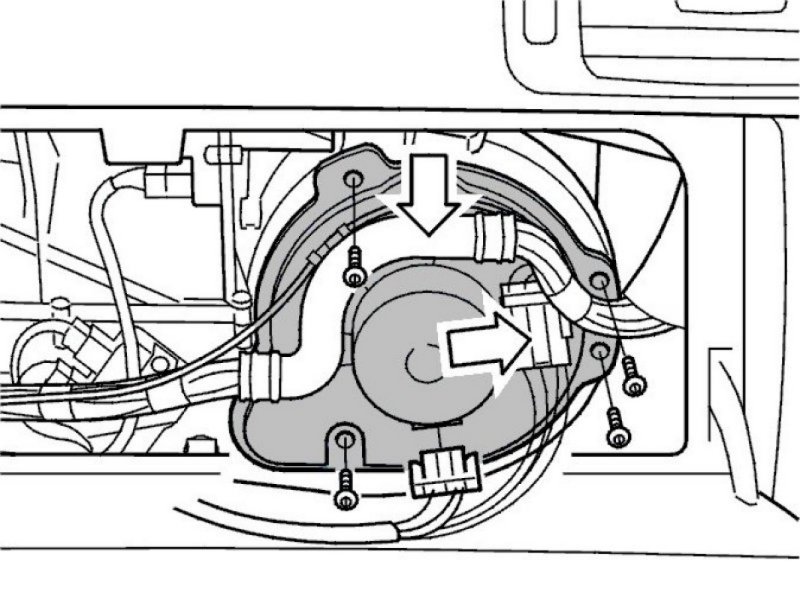

- Disconnect the blower fan motor connector.
- Expose blower fan motor (remove cable duct and disconnect heater aggregate connector from blower fan motor).
- Remove blower fan motor.

Installing blower fan motor
In reverse order.

Finishing:
- Check that the blower fan is working.
- Check that no diagnostic trouble codes (DTCs) have been stored while the repair was carried out.
