Faulty Signal. Intermittent Fault

Faulty signal. Intermittent fault

Checking the signal cable
Check combined instrument panel and outside temperature sensor connector for contact resistance and oxidation according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.

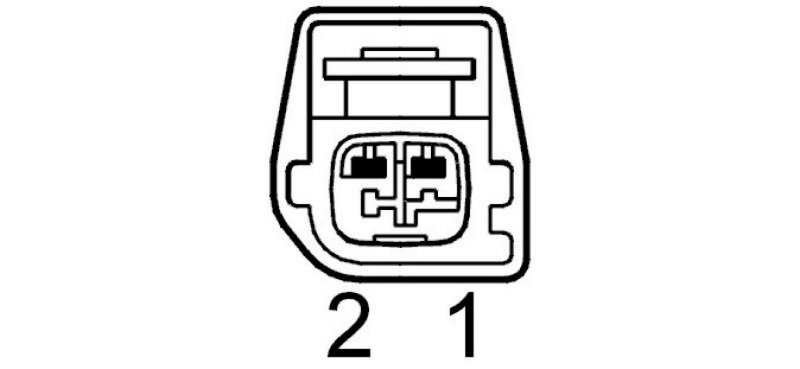

Check signal cable and ground lead between combined instrument panel #A24 (breakout box #24) and #A25 (breakout box #25) and outside temperature sensor #1 and #2 for an intermittent open-circuit according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Check signal cable between combined instrument panel #A24 (breakout box #24) and outside temperature sensor #1 for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.

Other information:
- To connect the breakout box, see Connecting breakout box, Combined instrument panel Connecting the Breakout Box.
- For information about signals, see Connector A, #A1 - #A30 , Connector B, #B1 - #B16 and Connector D, #D1 - #D5.









Continue - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
If the fault is intermittent, do not verify fault-tracing if the fault does not recur.
It is possible to view the information again, or leave fault-tracing for this diagnostic trouble code (DTC).

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

Attempt New Test - Checking the signal cable

FAULT FOUND - DONE

-------------------------------------------------
