Current Too High. Permanent Fault
Current too high. Permanent fault
Mechanical check
Carry out the mechanical check according to Mechanical check Mechanical Check.
Check the catch position as illustrated.
Was the fault found?
Yes - Calibrating the convertible system
No - Checking the values
-------------------------------------------------
Checking the values
- Ignition on
- Connect the Volvo Scan Tool (ST).
Read off the program status of the convertible top. Check the values at the relevant step.
Other information:
- For the comment sheet, see Diagnostic list for convertible tops Diagnostic List For Convertible Tops
- For other values, see Opening and closing the convertible top Opening and Closing the Convertible Top
- To connect the breakout box, see Connecting the convertible control unit breakout box Connecting the Breakout Box.
Are these values correct?
Yes - Checking connectors and wiring
No - Replacing the potentiometer
-------------------------------------------------
Checking connectors and wiring
- Ignition off

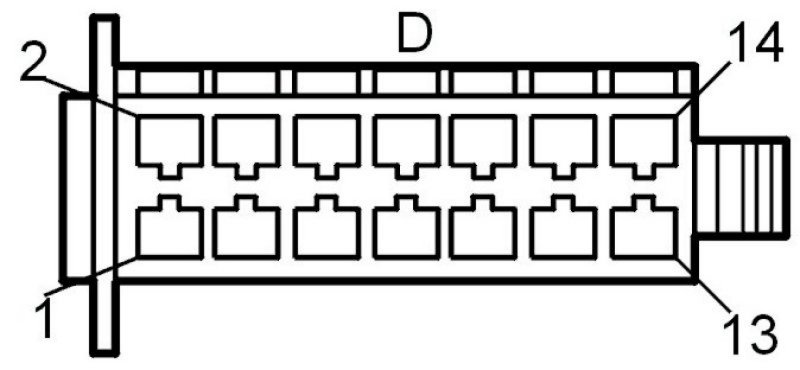

- Check control module connector D. Check for a short-circuit to supply voltage. See Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault
- Ignition on.
Connect a voltmeter in order between:
D7 and ground, motor, front lock.
D13 and ground, motor, rear locking arms.
Check for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Remedy as necessary.
Other information:
- To connect the breakout box, see Connecting the convertible control unit breakout box Connecting the Breakout Box
- To access or replace the control module see Replacing the control module Service and Repair.
Was a short-circuit found?
Yes - Verification
No - Checking the engine
-------------------------------------------------
Checking the engine
- Ignition off
- Check the relevant motor connector for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault
- Ignition on.

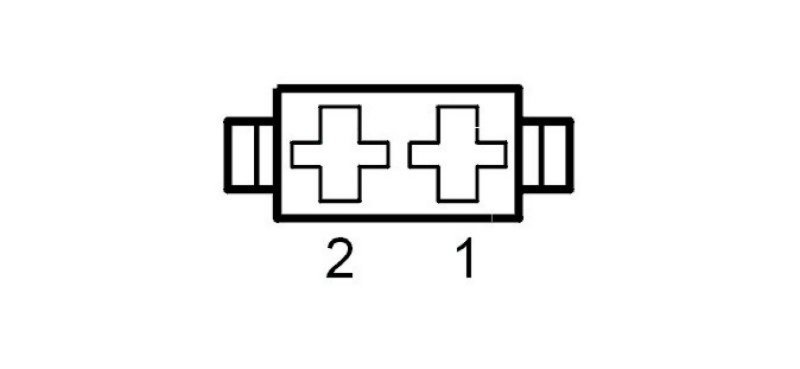

Connect a voltmeter between motor 1 and ground, and between 2 and ground.
Check for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Replace the motor if a short-circuit is found.
If no fault is found there is probably a short-circuit in the cable between the control module and the motor connectors.
Remedy as necessary.
Other information:
- To access and replace the motor for the front lock, see Replacing motors Service and Repair
- To access or replace the motor for the rear locking arms, see Replacing motors Service and Repair.
Was the fault found?
Yes - Verification
No - No Fault Found
-------------------------------------------------
Replacing the potentiometer
Replace the potentiometer if the values were not correct. See Replacing the potentiometer Replacing the Potentiometer. Otherwise select "Continue".
Continue - Calibrating the convertible system
-------------------------------------------------
Calibrating the convertible system
It is important that the potentiometer values are calibrated and programmed into the control module if the potentiometer has been replaced. Carry out programming and calibration in VIDA.
Continue - Verification
-------------------------------------------------
Verification
Verification
Hint: After the repair it is necessary to check that the fault has been rectified.
- Ignition off
- Connect the connectors, install the components, etc.
- Ignition on
- Apply parking brake
- Close the luggage compartment lid
- Speed < 4km/h.
Operate the control switch to move the convertible top.
Move the convertible top to its end positions.
Does the convertible top work?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFICATION FAILED - Fault-tracing information
VERIFIED - FAULT FOUND
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit fault-tracing
No - Attempt New Test
------------------------
Attempt New Test - Mechanical check
-------------------------------------------------
