Main Relay (Computer/Fuel System): Locations




Fuse/Relay Identification and Location

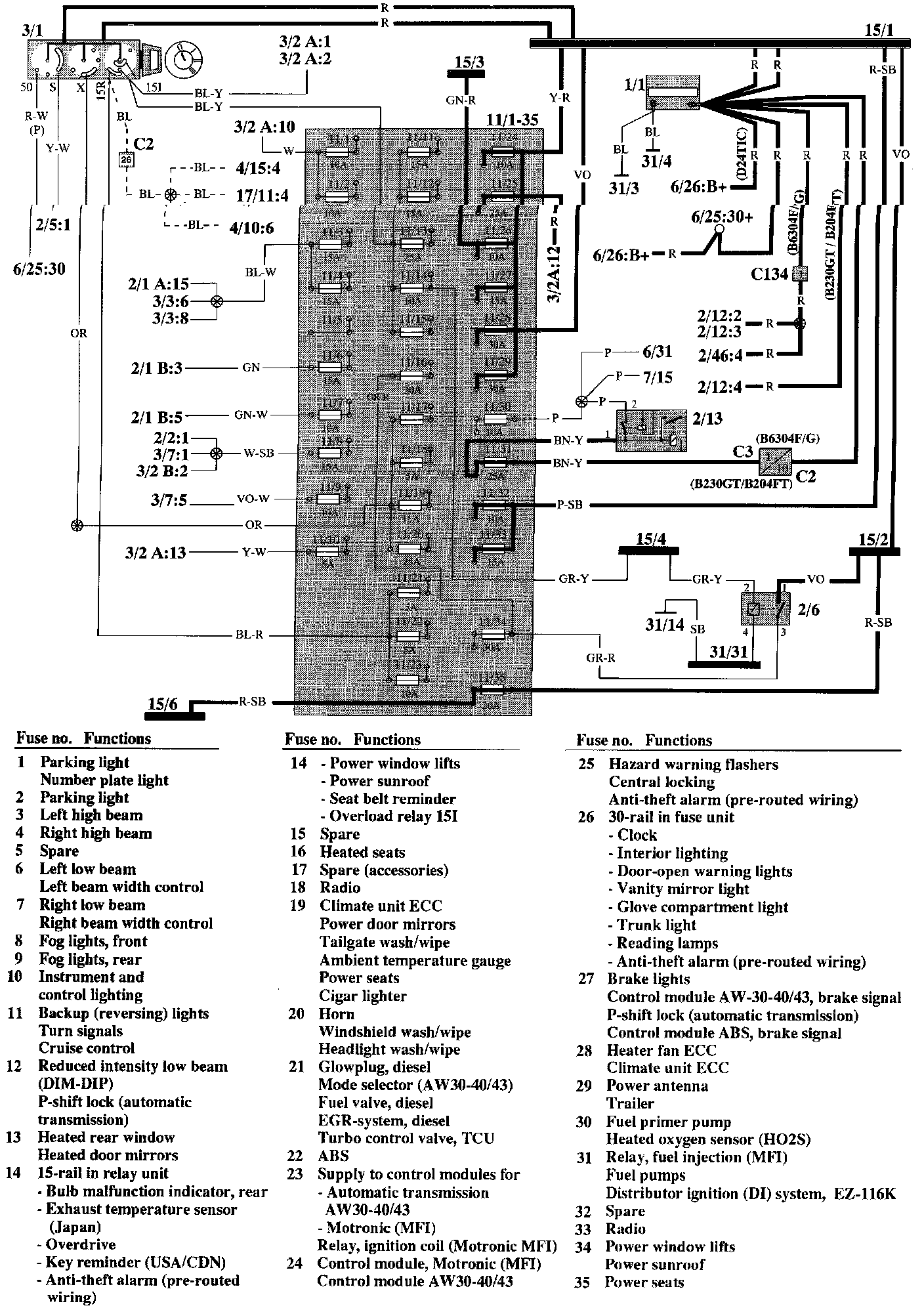

Fuse and Wiring Distribution:

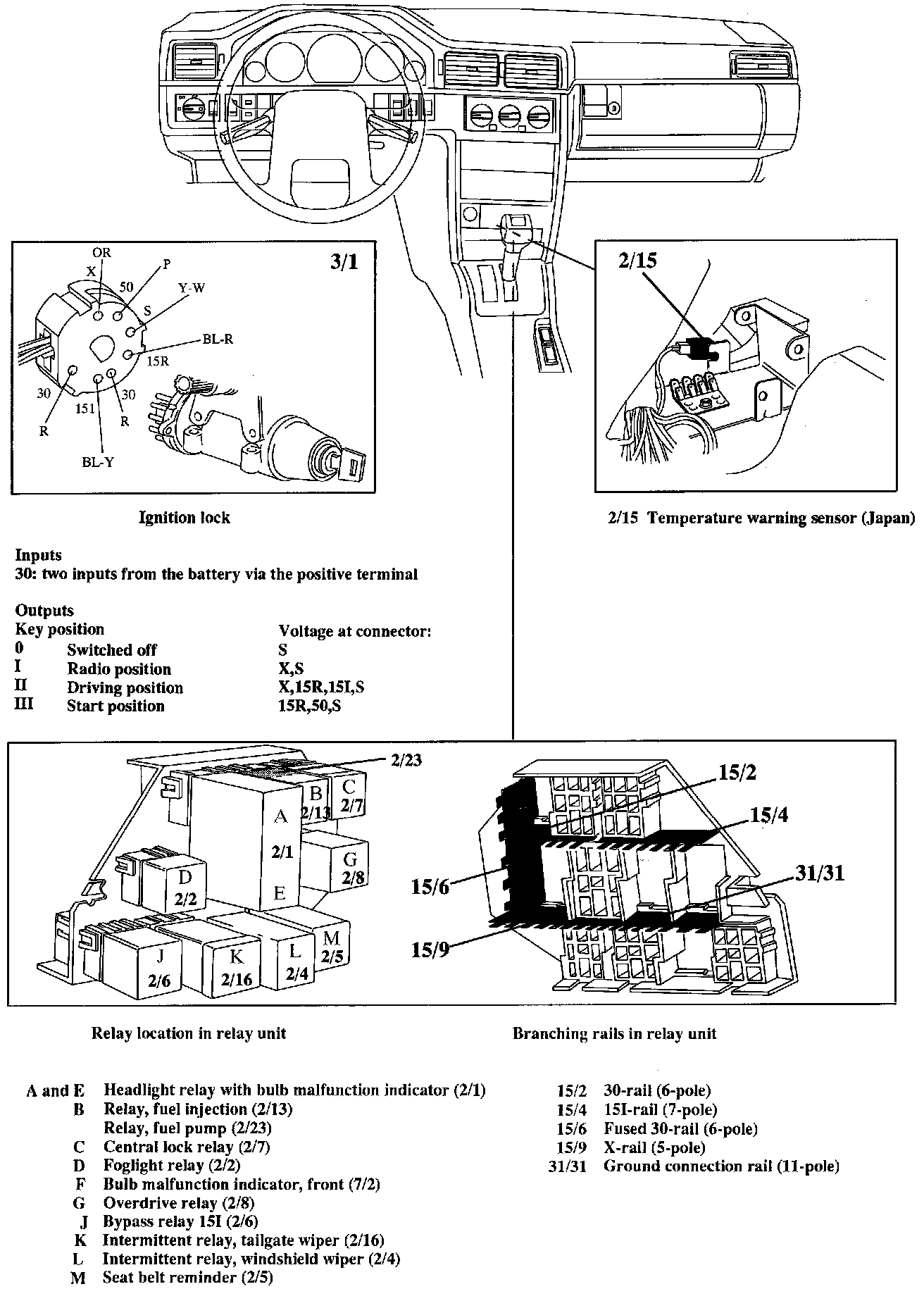

Ignition Lock And Relay Unit:

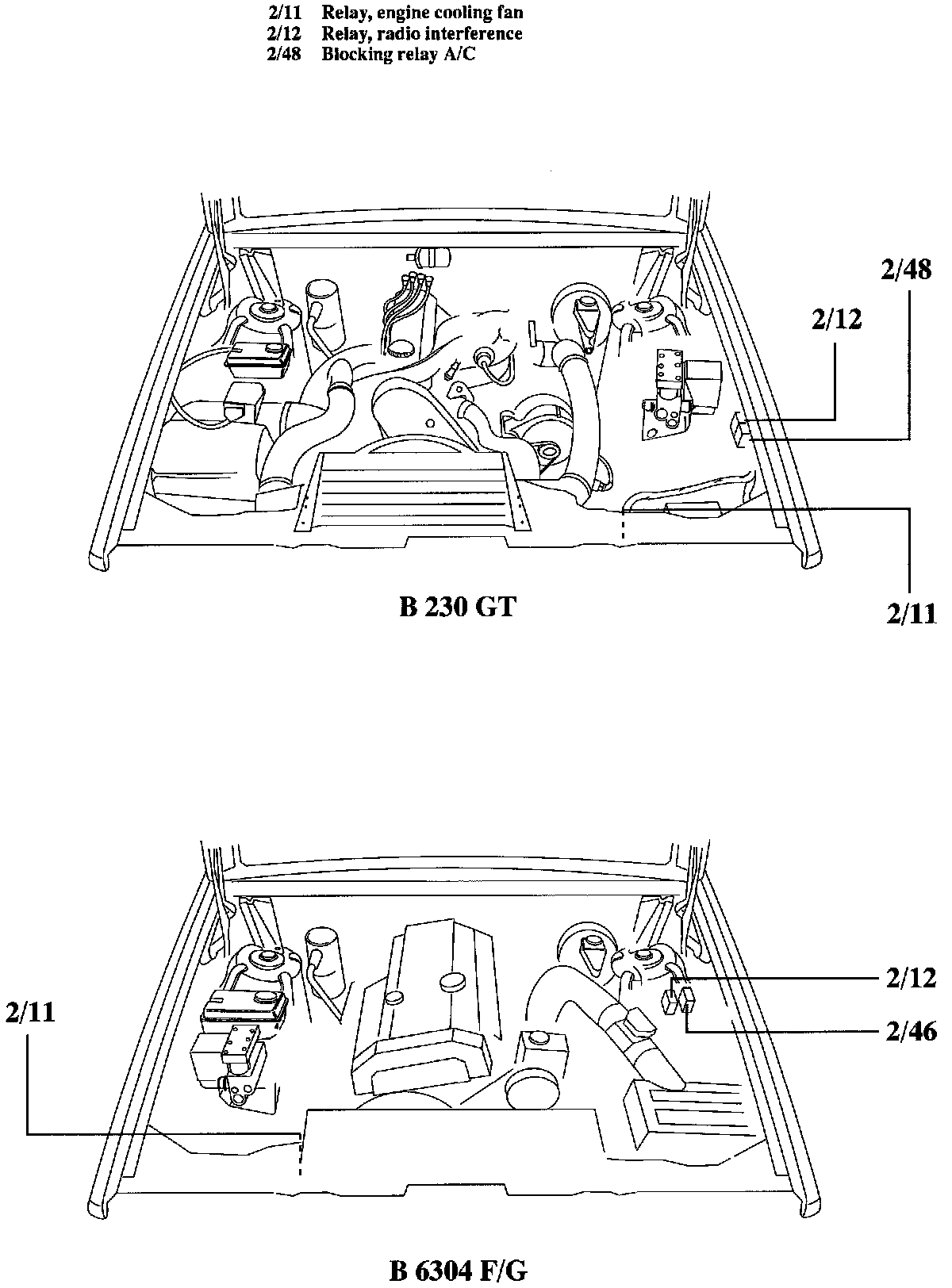

Relay Location In Engine Bay:

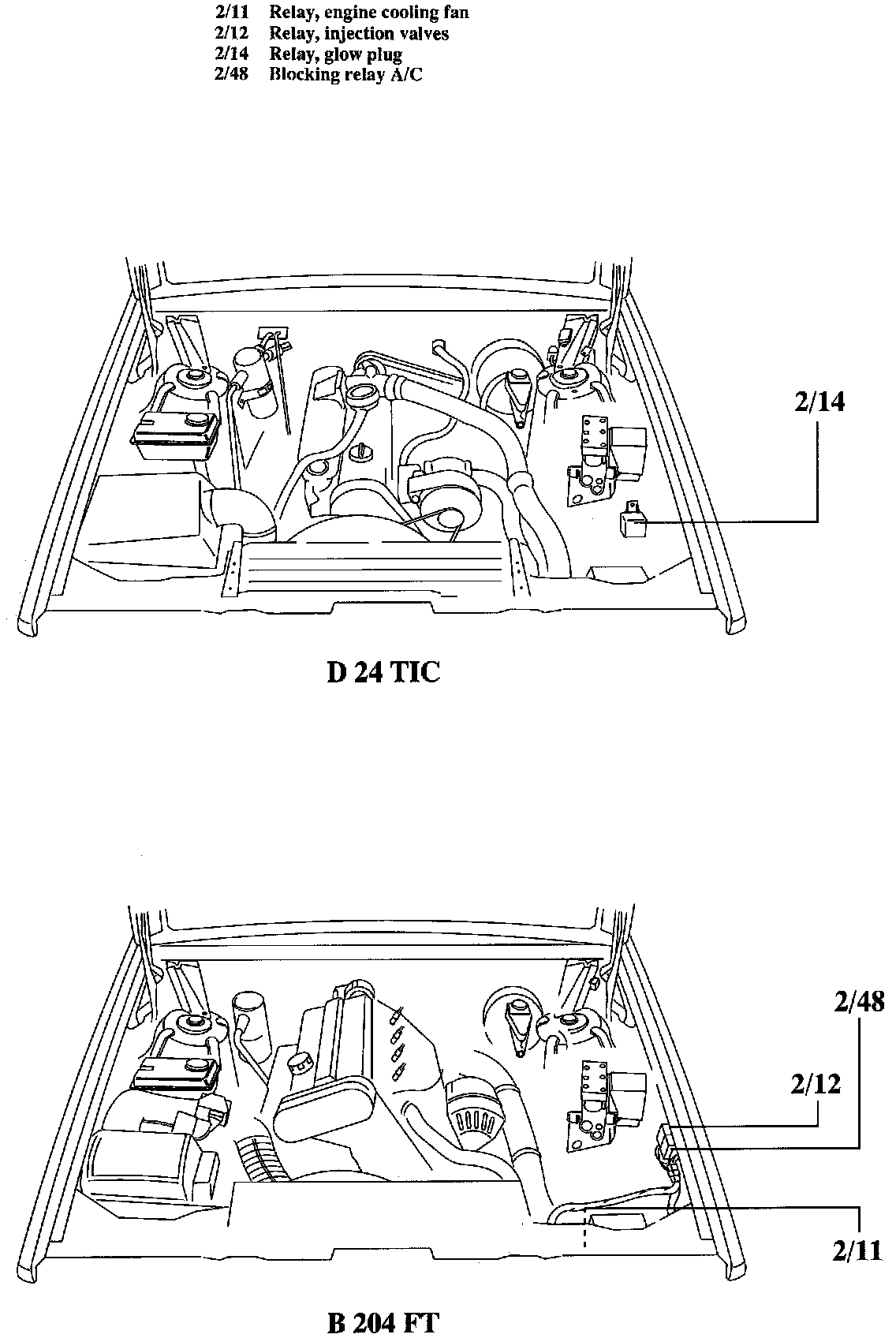

Relay Location In Engine Bay:
