Home >> Volvo >> 1990 >> 760 V6-2849cc 2.8L SOHC B280F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

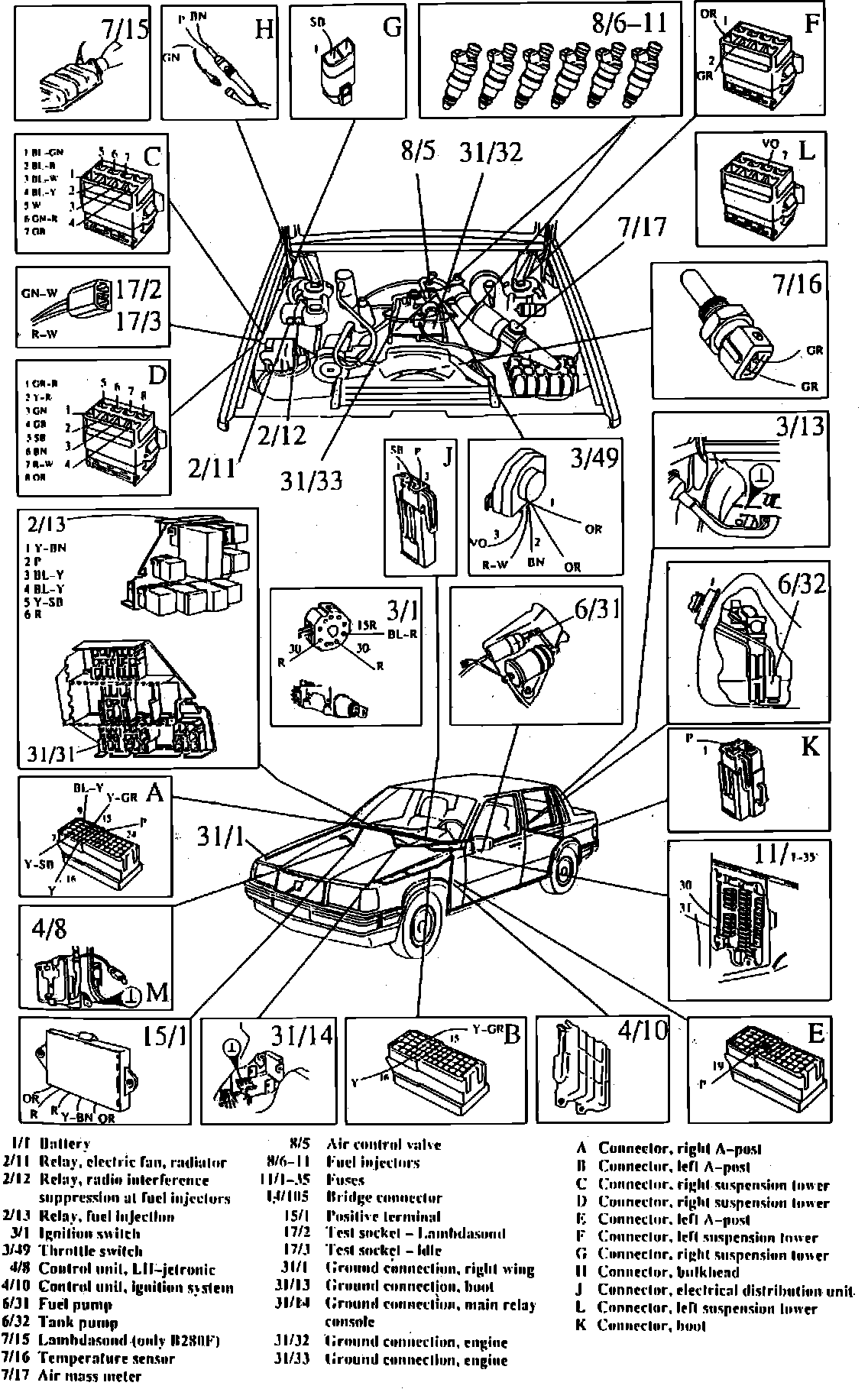

Throttle Position Sensor: Locations

LH-Jetronic Fuel Injection, 2.:




Front Of Engine

Applicable to: 2 Components. B280F
