Home >> Volvo >> 1987 >> 780 V6-2849cc 2.8L SOHC B280F >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Technical Specifications >> General

General

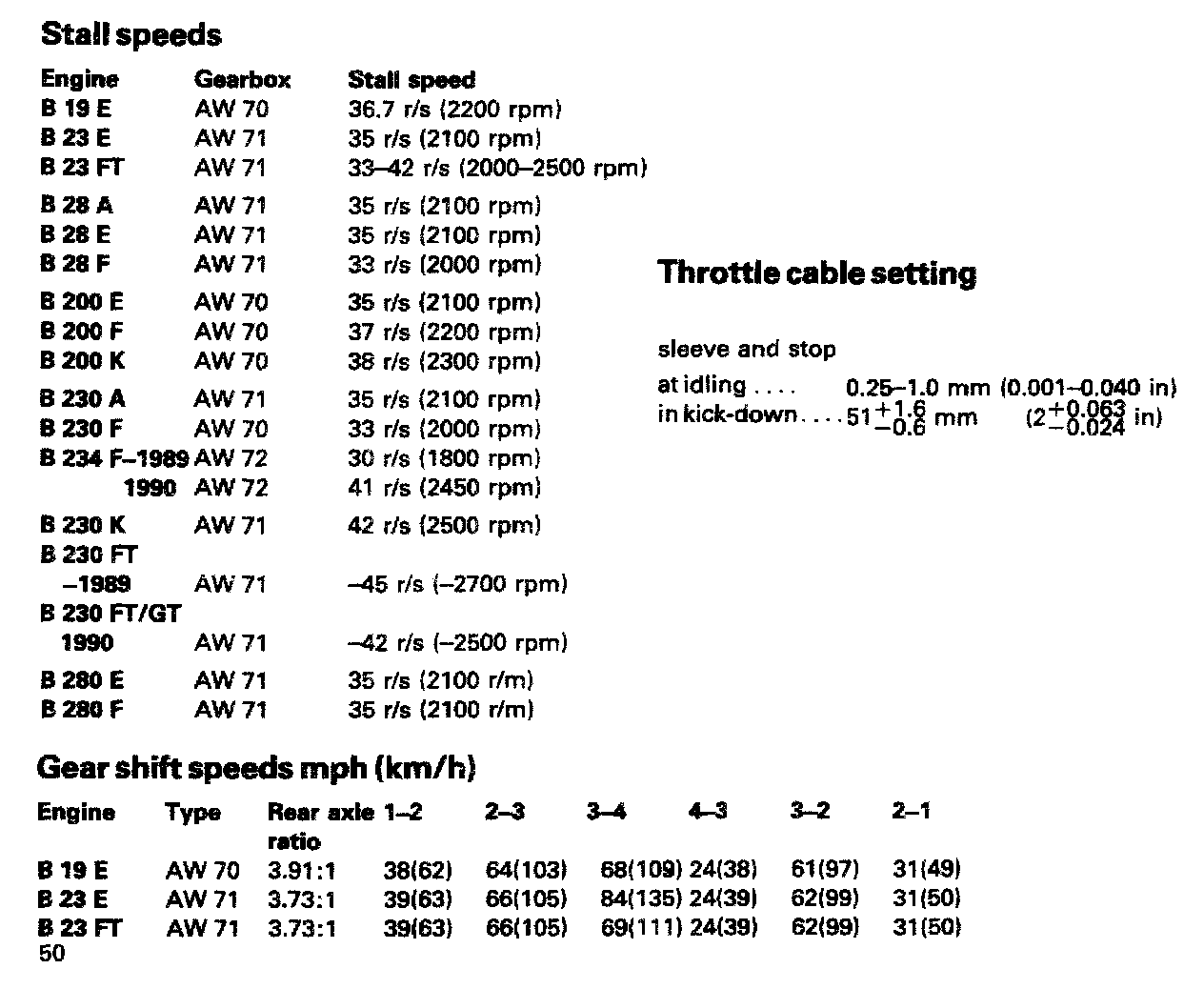

AW 70/71 Technical Data:

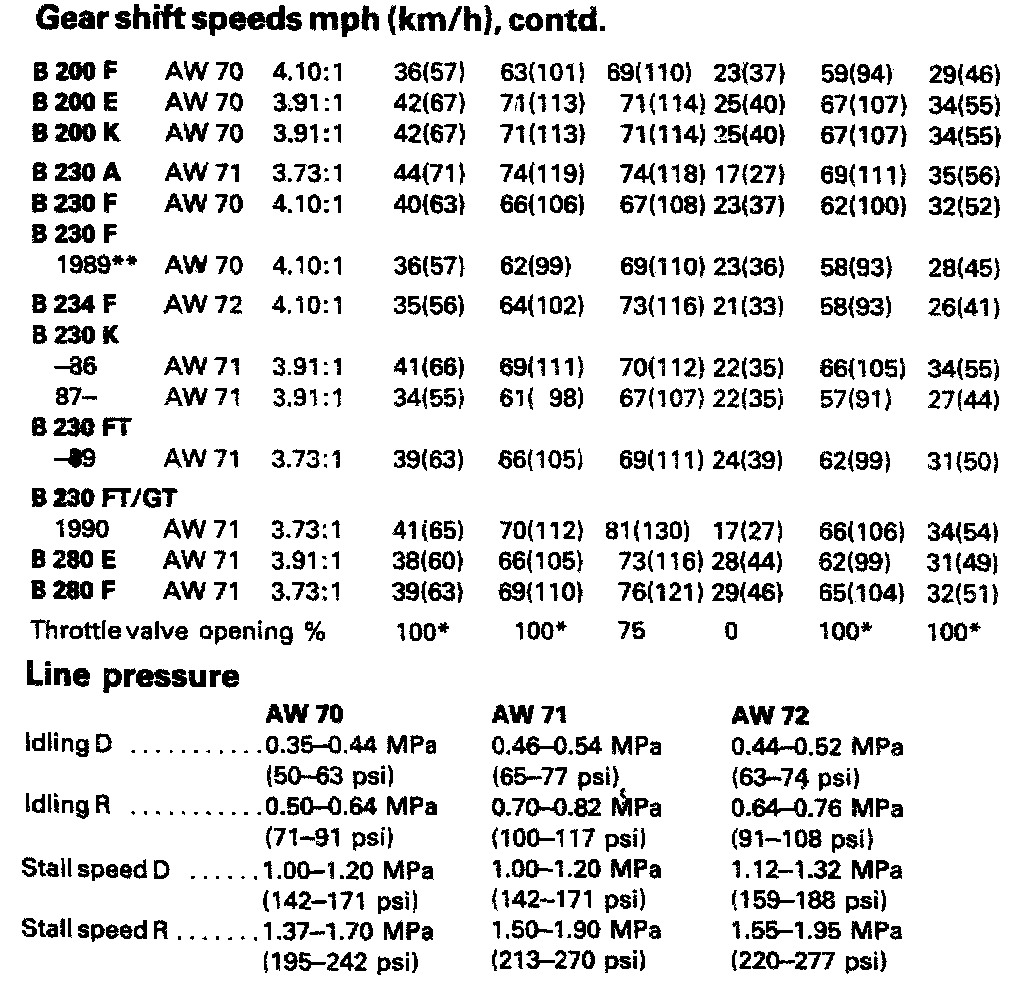

AW 70/71 Technical Data Cont.:

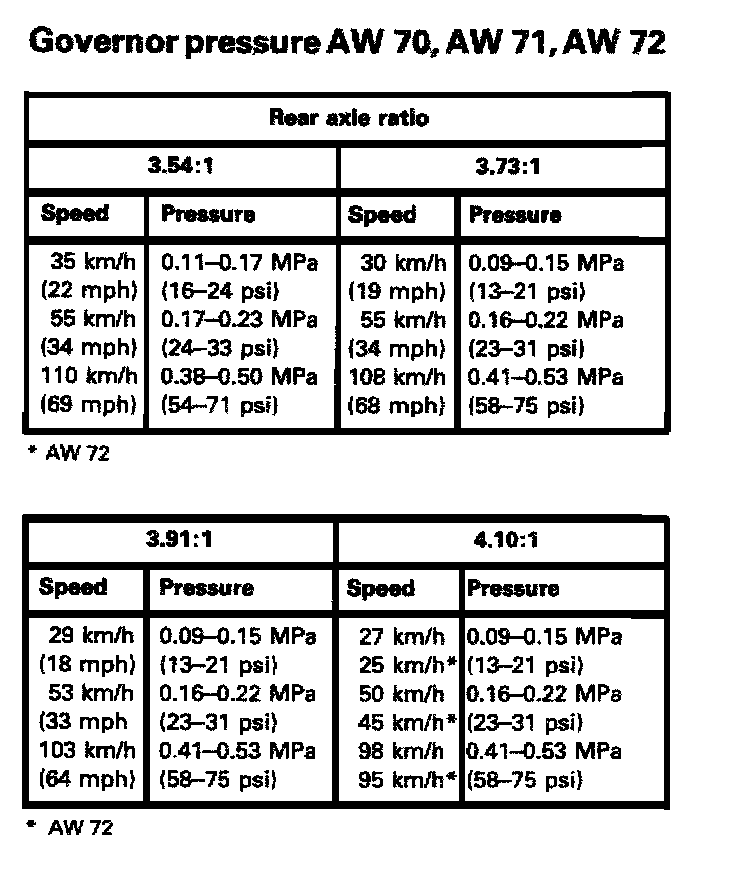

AW 70/71/72 Governor Pressure:
