Diagram Information and Instructions

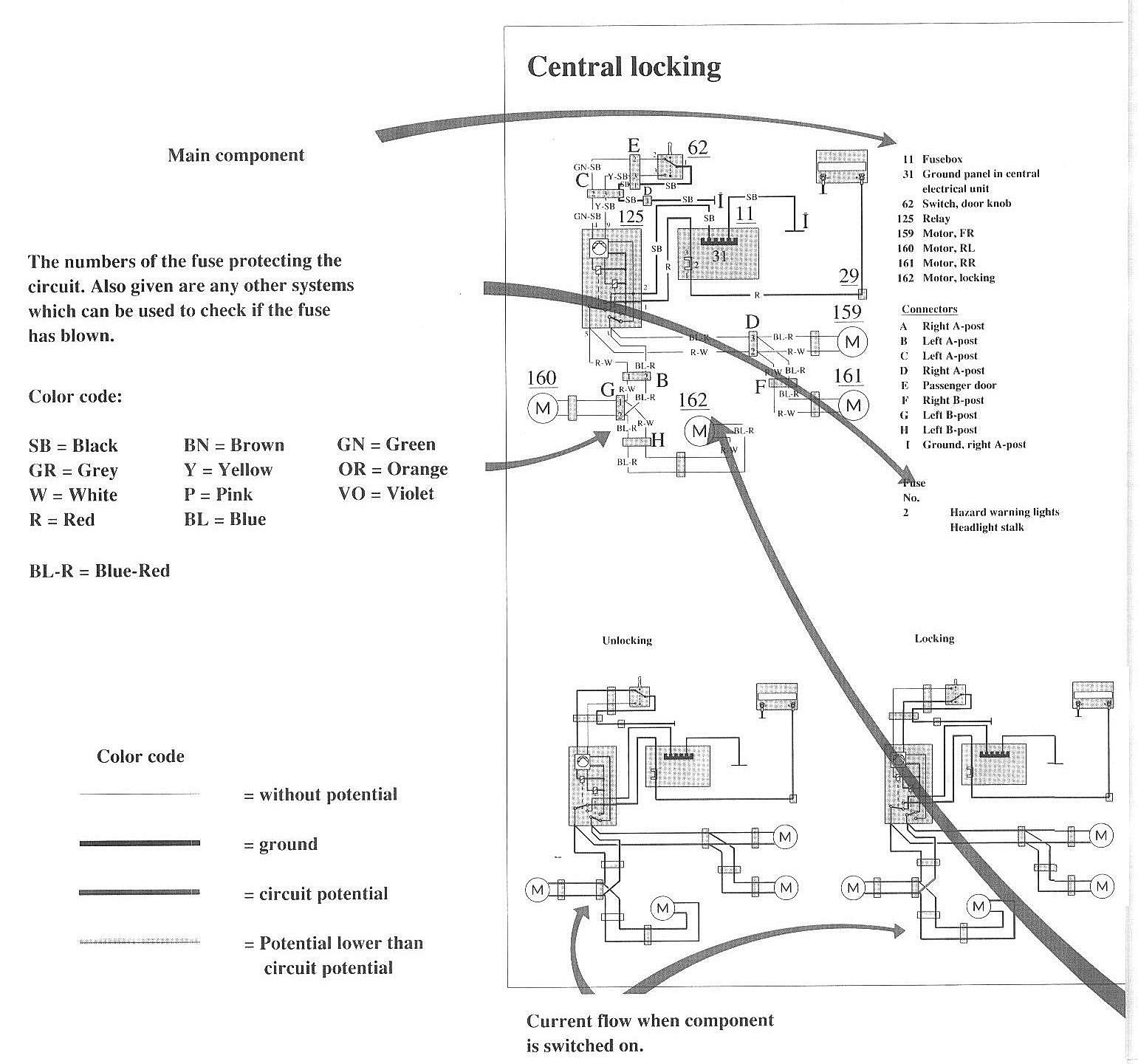

How To Read Wiring Diagrams:

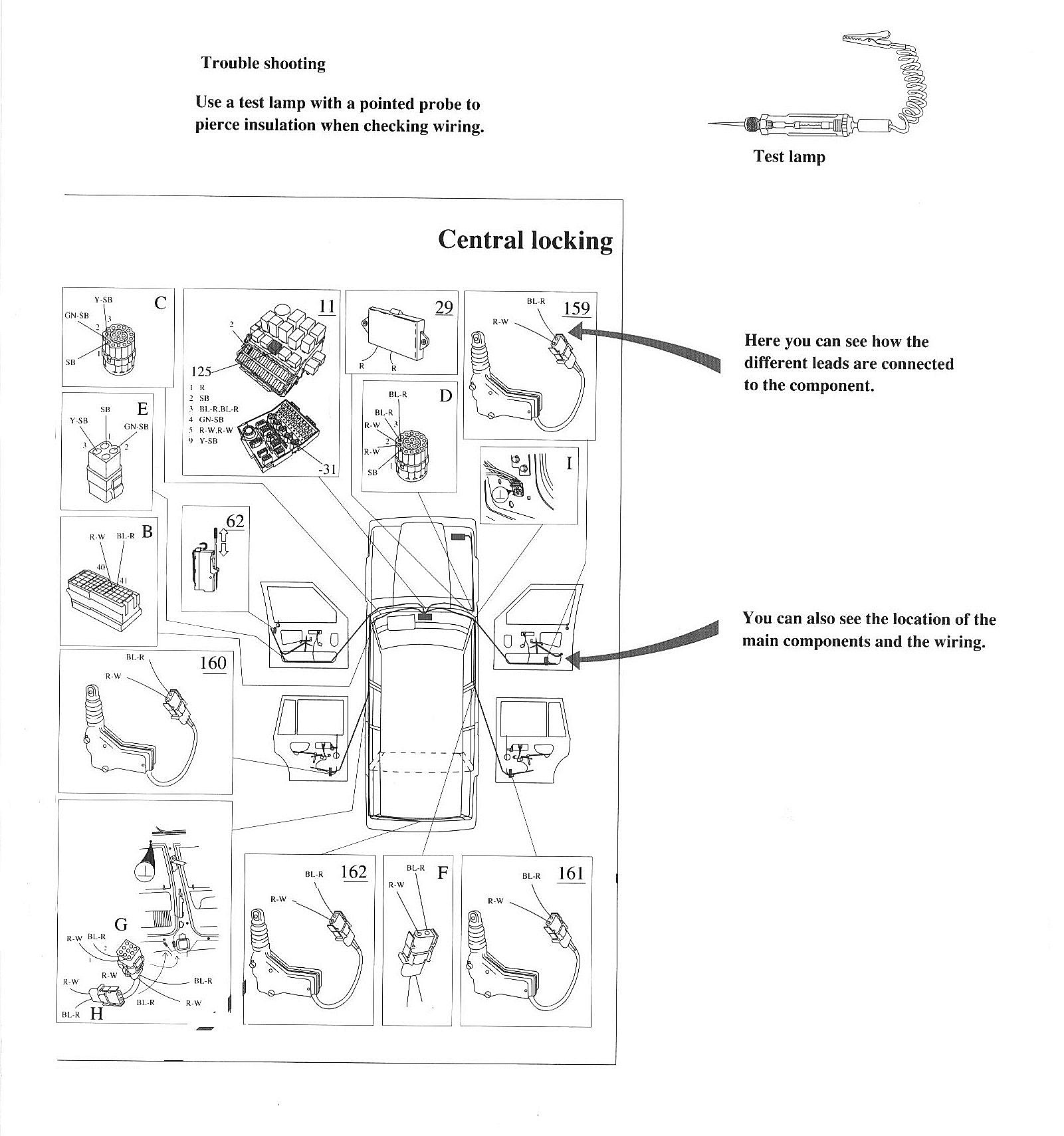

How To Read Component / Connector Views:
