Home >> Volvo >> 1983 >> 760 V6-2849cc 2.8L SOHC B28F >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Fuel Injection System >> CIS Fuel Injection System >> With O2 Sensor

With O2 Sensor

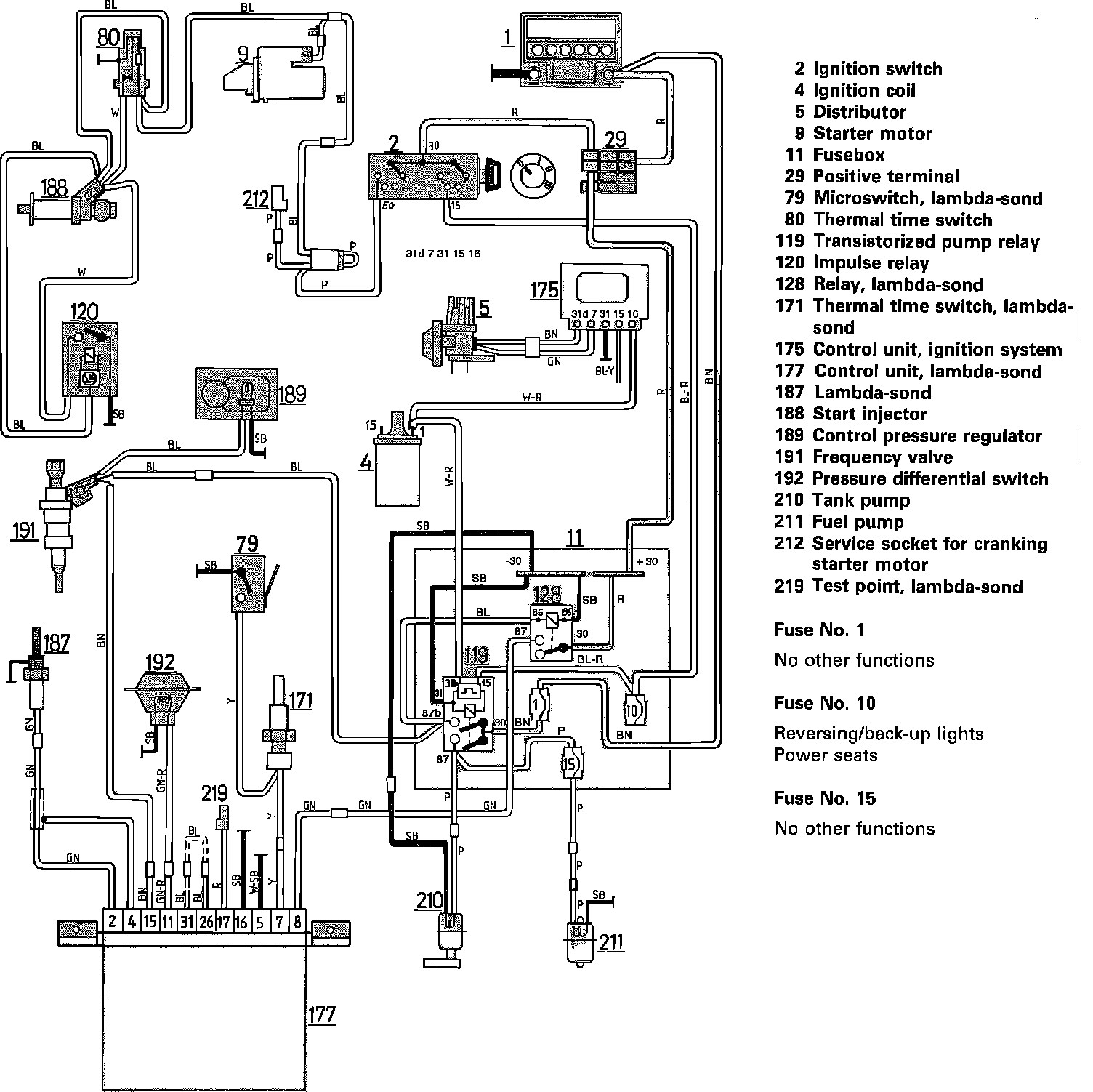

Fig. 107 Fuel Injection System (B28F):
