Valve Body Overview

Valve Body Overview

Do not run the engine or tow the vehicle when the transmission fluid pan is removed or when there is no transmission fluid in the transmission.

• The valve body and the wiring harnesses can also be removed with the transmission installed.

• Install seals using transmission fluid. Other types of lubricants can lead to faults in the transmission hydraulics.

• Always replace a dirty or faulty valve body.

• Only use lint free cloths

• Check the transmission fluid level after installing the transmission fluid pan. Refer to => [ Transmission Fluid Level, Checking and Filling ] ATF Level, Checking and Filling.

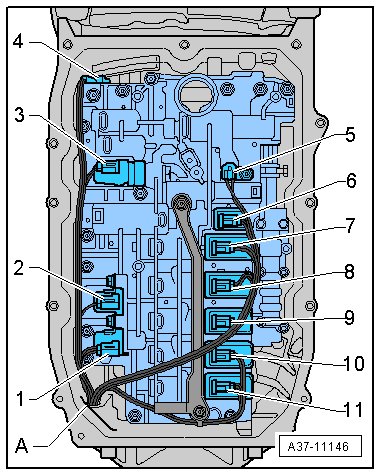

1 Solenoid Valve 1 (N88)
2 Solenoid Valve 2 (N89)
3 Automatic Transmission Pressure Regulating Valve 7 (N443)
4 Transmission Input Speed Sensor (G182)
5 Transmission Fluid Temperature Sensor (G93)
6 Automatic Transmission Pressure Regulating Valve 1 (N215)
7 Automatic Transmission Pressure Regulating Valve 3 (N217)
8 Automatic Transmission Pressure Regulating Valve 6 (N371)
9 Automatic Transmission Pressure Regulating Valve 4 (N218)
10 Automatic Transmission Pressure Regulating Valve 2 (N216)
11 Automatic Transmission Pressure Regulating Valve 5 (N233)
A Wiring Harness for the Valve Body with an Integrated Transmission Fluid Temperature Sensor (G93)
