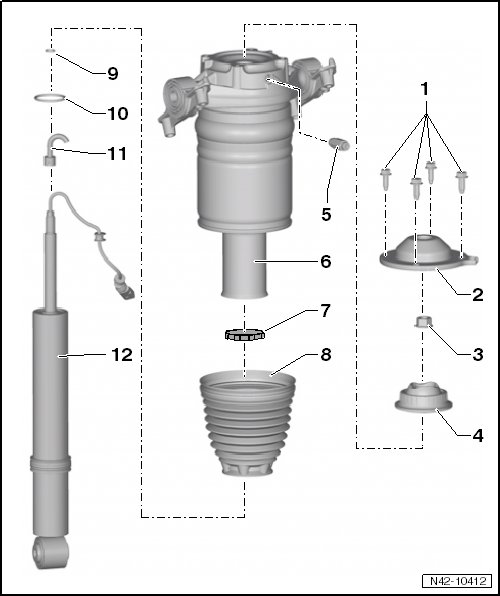

Rear Air Spring Damper Overview

Rear Air Spring Damper Overview






1 Bolt

• 27 Nm

• Quantity: 4

2 Cover

3 Nut

• 70 Nm

• Always replace if removed.

4 Rubber Mount

5 Pressure-Holding Valve

• 12 Nm

• Observe important information regarding removal and installation, refer to => [ The vehicle must be on a lifting platform to replace the pressure-holding valve. The vehicle wheels must rotate freely. ] Rear Suspension.

• Removing and Installing, refer to => [ Pressure-Holding Valve ] Rear Suspension.

6 Air Spring

• Observe the information regarding air spring shock absorber repair. Refer to => [ Air Spring Damper Repair Information ] Air Spring Damper Repair Information.

• When the vehicle has been driven 200,000 km, if there is damage to an air spring, it is recommended that the opposite air spring is also replaced.

• With integrated buffer stop.

7 Anti-Extraction Device

• Always replace if removed.

8 Boot

• Replace in the case of an installed air spring shock absorber. Refer to => [ Air Spring Shock Absorber Boot ] Service and Repair.

9 Seal

• Always replace if removed.

• Grease with (N 052 150 00).

10 Seal

• Always replace if removed.

• grease with (N 052 150 00).

11 Cable Guide

12 Shock Absorbers

• For the correct allocation, refer to the Electronic Parts Catalog (ETKA).

• Observe the information regarding air spring shock absorber repair. Refer to => [ Air Spring Damper Repair Information ] Air Spring Damper Repair Information.
