Airbag, Front Passenger Seat Occupant Sensor G128

Front Passenger Seat Occupant Sensor G128

If the front passenger seat occupant sensor is replaced, the front seat cushion must also always be replaced. Refer to => [ Front Seat Cover and Cushion ] Front Seat Cover and Cushion!

Removal

- Remove seat. Refer to => [ Front Seat ] Front Seat.

- Remove the belt latch. Refer to => [ Front Belt Latches ] Front Belt Latches.

- Remove the trim on the tunnel side. Refer to => [ Tunnel Side Trim ] Tunnel Side Trim.

- Remove the trim on the door sill side. Refer to => [ Door Sill Side Trim ] Door Sill Side Trim.

- Remove the drawer. Refer to => [ Drawer ] Drawer.

- Remove the trim bracket on the door sill side. Refer to => [ Door Sill Side Trim Bracket ] Door Sill Side Trim Bracket.

- Remove the seat cover and cushion. Refer to => [ Front Seat Cover and Cushion ] Front Seat Cover and Cushion.

The front passenger seat occupant sensor - 1 - is bonded with the seat cushion. Separate removal and installation are not possible. The sensor must be replaced with the seat cushion.






Installation

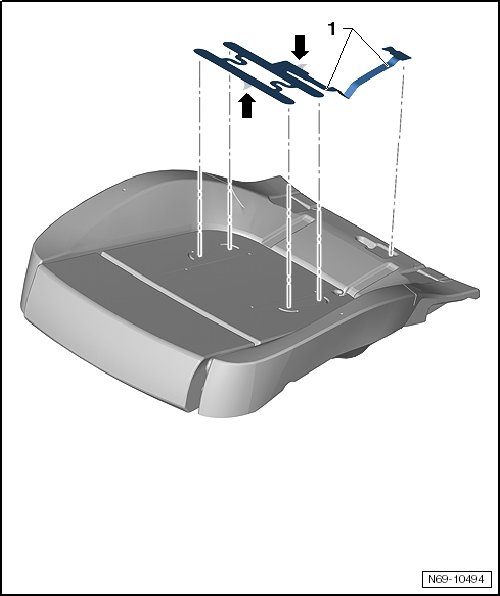

- Press the front passenger seat occupant sensor - 1 - into the corresponding recesses of the cushion and align.

Ensure that the distance from the sensor to the positioning aids is constant.

- Secure the aligned sensor with the right hand, remove the films - arrows - and bond the sensor - 1 - to the cushion.






Installing of remaining components is reverse of removal.

- After installation, perform a function check with the ignition on.
