Front Axle Overview

Front Axle Overview

• Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.

• Always replace self-locking nuts.

• Always replace corroded bolts/nuts.

• Bonded rubber bushings can only be turned to a limited extent. Therefore, the threaded connections of the components with bonded rubber bushings should only be tightened when the wheel bearing housing is lifted (curb weight position).

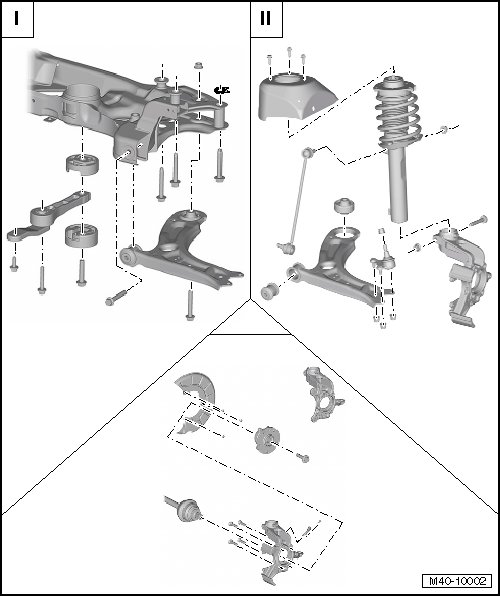

I - => [ Subframe Overview ] Subframe Overview

II - => [ Lower Control Arm and Ball Joint Assembly Overview ] Lower Control Arm and Ball Joint Assembly Overview

III - => [ Wheel Bearing Assembly Overview ] Wheel Bearing Assembly Overview

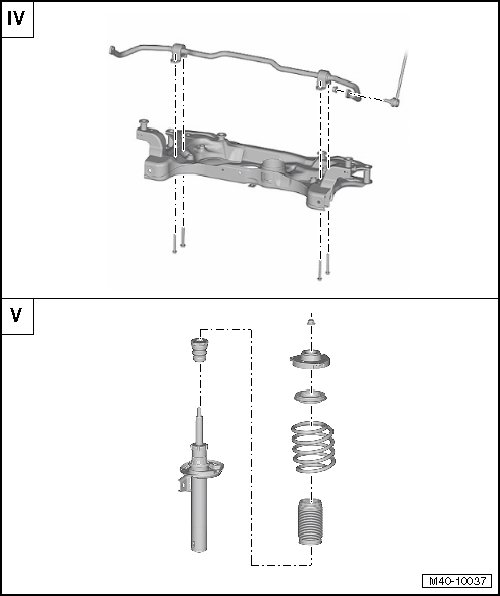

IV - => [ Stabilizer Bar Assembly Overview ] Stabilizer Bar Assembly Overview

V - => [ Lower Control Arm and Ball Joint Assembly Overview ] Lower Control Arm and Ball Joint Assembly Overview
