Driveshaft Assembly Overview

When disassembling and performing repairs on vehicle, the drive axles must not be allowed to hang down and contact the stops in the joint by overflexing.

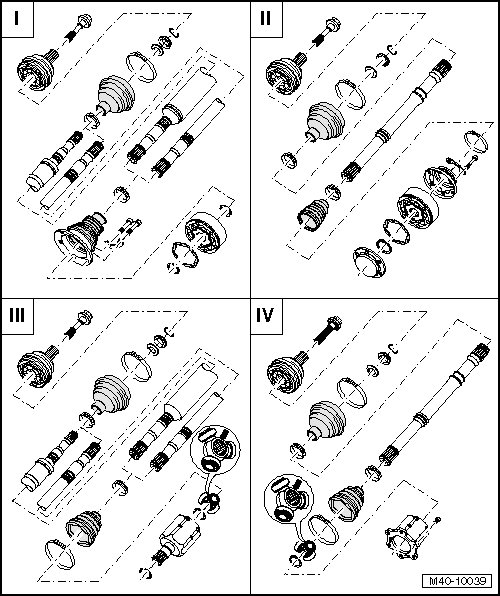

I - => [ Driveshaft Assembly Overview, CV Joint VL 100 ] Driveshaft Assembly Overview, CV Joint VL 100

II - => [ Driveshaft Assembly Overview, CV Joint VL 107 ] Driveshaft Assembly Overview, CV Joint VL 107

III - => [ Driveshaft Assembly Overview, Triple Roller Joint AAR2600i ] Driveshaft Assembly Overview, Triple Roller Joint AAR2600i

IV - => [ Driveshaft, Triple Roller Joint AAR3300i Assembly Overview ] Driveshaft, Triple Roller Joint AAR3300i Assembly Overview

Difference of drive axles in installed condition
